Description

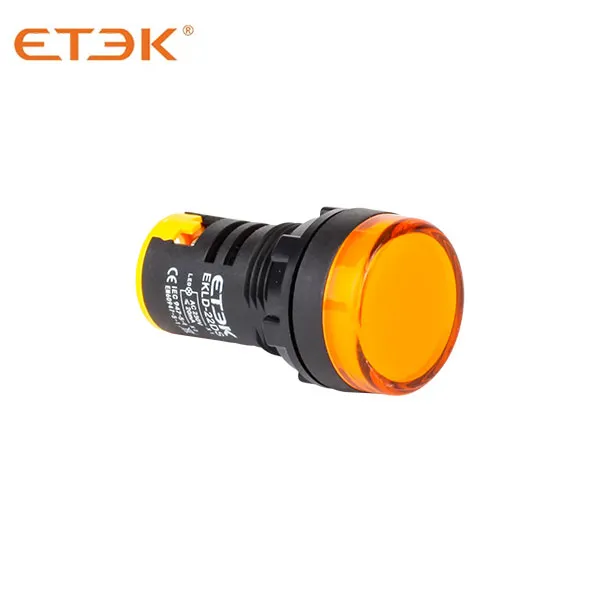

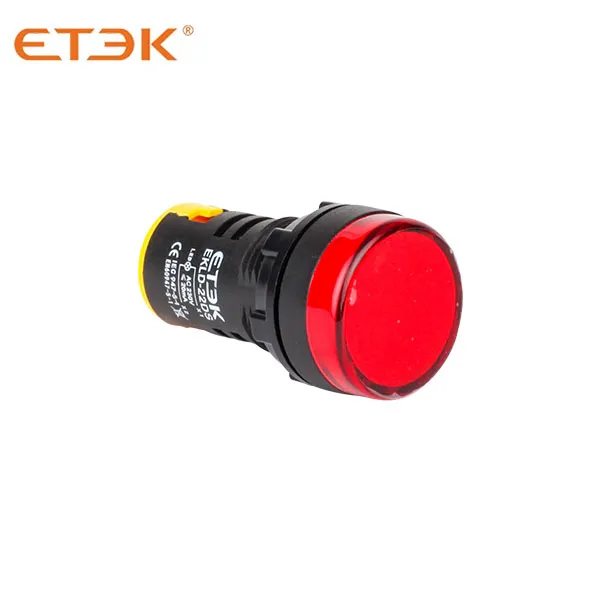

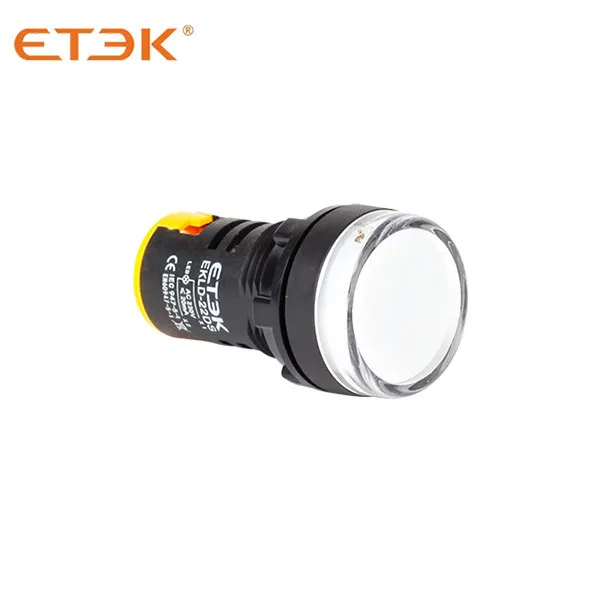

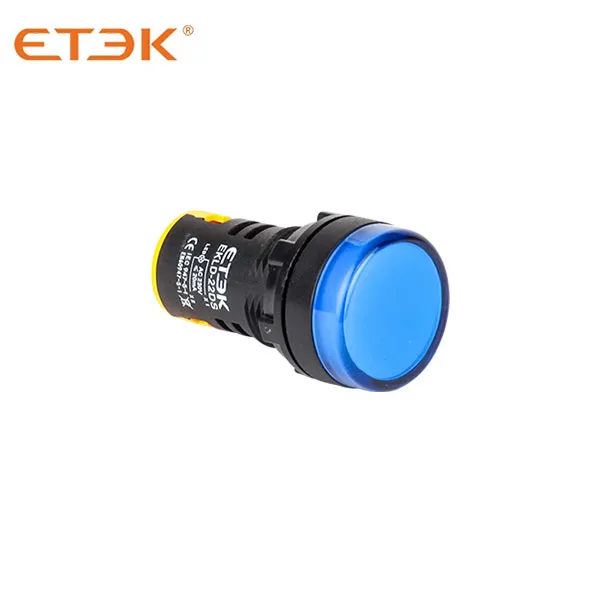

Le voyant indicateur expérimental de la série EKLD22 utilise une puce LED à couleur solide haute luminosité comme source lumineuse, avec une longue durée de vie, une faible consommation d'énergie, une petite taille, un poids léger, une luminosité élevée, une bonne fiabilité, une belle apparence et une fabrication exquise, convient aux secteurs de l'énergie électrique, des télécommunications, des machines-outils, des navires, du textile, de l'imprimerie, des machines minières et autres équipements, il est utilisé comme signal d'indication, signal d'avertissement, signal d'accident et autres signaux d'indication.
1. Taille du trou : φ22,5 mm, les diamètres de φ25 mm et φ30 mm peuvent être réalisés en sélectionnant la bague de réduction ;

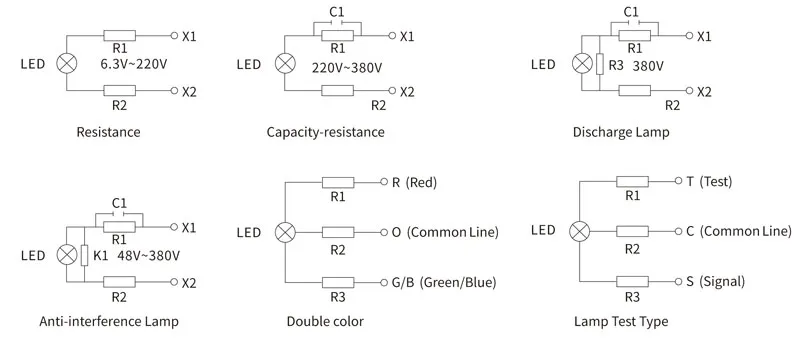

2. Contrôler différentes formes d'émission de lumière via différentes bornes pour indiquer clairement différents états de fonctionnement ;
3. Les pièces sont fabriquées à partir de matériaux importés, qui sont durables et résistants à l'usure ;
4. Câblage intégré de type vis, plus sûr et plus pratique.
| Température de fonctionnement : -5℃ à +40℃ | Tension de tenue à fréquence industrielle : 2500 V, min. | ||||||||
| Humidité de fonctionnement : 45 % à 85 % | Degré d'installation : III | ||||||||
| Degré de pollution : 3 | Degré de protection : IP65 | ||||||||
| Tension de fonctionnement nominale | (Ue) | CA/CC CA/CC | CA/CC | CA/CC | CA/CC | CA/CC | CA/CC | AC | |
| 6,3 V | 12V | 12V | 24V | 48V | 110 V | 220 V | 380 V | ||
| Courant de fonctionnement nominal | (Ie)≤80mA ≤20mA | ||||||||

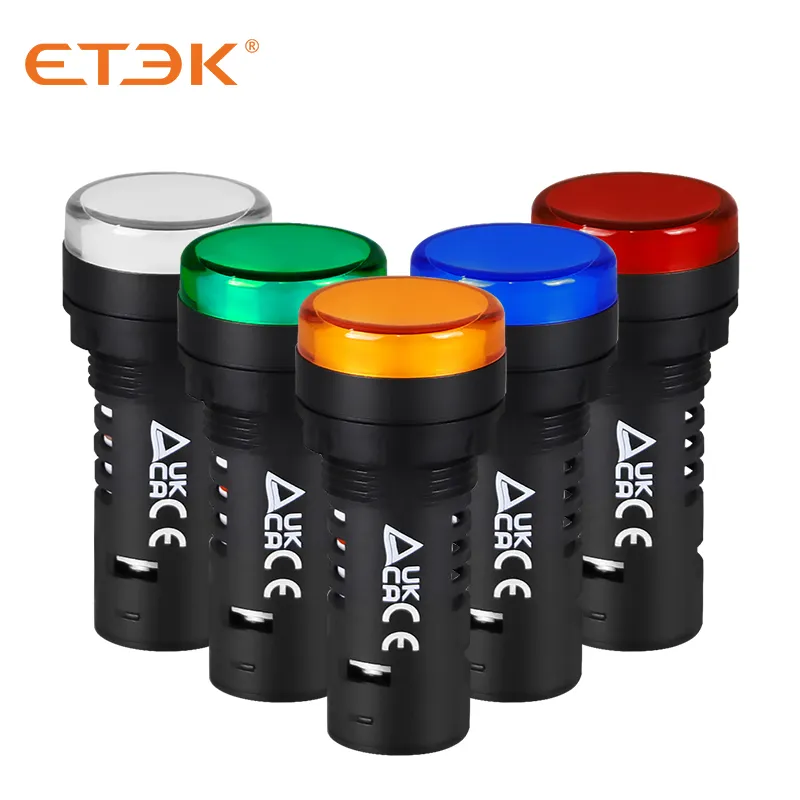

| Couleur de base | Vert Jaune Rouge Bleu Blanc | ||||||||
| Durée de vie électrique (h) | ≥3000 | ||||||||
| Luminosité | ≥60 | ||||||||
| Reference No. | Specification |
| EKLD-22DS-R-12 | LED Indicator General type 22mm Red 12VAC/DC |
| EKLD-22DS-R-24 | LED Indicator General type 22mm Red 24VAC/DC |
| EKLD-22DS-R-48 | LED Indicator General type 22mm Red 48VAC/DC |
| EKLD-22DS-R-110 | LED Indicator General type 22mm Red 110VAC/DC |
| EKLD-22DS-R-220 | LED Indicator General type 22mm Red 220VAC |
| EKLD-22DS-R-220D | LED Indicator General type 22mm Red 220VDC |
| EKLD-22DS-R-230 | LED Indicator General type 22mm Red 230VAC |
| EKLD-22DS-R-380 | LED Indicator General type 22mm Red 380VAC |
| EKLD-22DS-Y-12 | LED Indicator General type 22mm Yellow 12VAC/DC |
| EKLD-22DS-Y-24 | LED Indicator General type 22mm Yellow 24VAC/DC |
| EKLD-22DS-Y-48 | LED Indicator General type 22mm Yellow 48VAC/DC |
| EKLD-22DS-Y-110 | LED Indicator General type 22mm Yellow 110VAC/DC |
| EKLD-22DS-Y-220 | LED Indicator General type 22mm Yellow 220VAC |
| EKLD-22DS-Y-220D | LED Indicator General type 22mm Yellow 220VDC |
| EKLD-22DS-Y-230 | LED Indicator General type 22mm Yellow 230VAC |
| EKLD-22DS-Y-380 | LED Indicator General type 22mm Yellow 380VAC |
| EKLD-22DS-G-12 | LED Indicator General type 22mm Green 12VAC/DC |
| EKLD-22DS-G-24 | LED Indicator General type 22mm Green 24VAC/DC |
| EKLD-22DS-G-48 | LED Indicator General type 22mm Green 48VAC/DC |
| EKLD-22DS-G-110 | LED Indicator General type 22mm Green 110VAC/DC |
| EKLD-22DS-G-220 | LED Indicator General type 22mm Green 220VAC |
| EKLD-22DS-G-220D | LED Indicator General type 22mm Green 220VDC |
| EKLD-22DS-G-230 | LED Indicator General type 22mm Green 230VAC |
| EKLD-22DS-G-380 | LED Indicator General type 22mm Green 380VAC |
| EKLD-22DS-B-12 | LED Indicator General type 22mm Blue 12VAC/DC |
| EKLD-22DS-B-24 | LED Indicator General type 22mm Blue 24VAC/DC |
| EKLD-22DS-B-48 | LED Indicator General type 22mm Blue 48VAC/DC |
| EKLD-22DS-B-110 | LED Indicator General type 22mm Blue 110VAC/DC |
| EKLD-22DS-B-220 | LED Indicator General type 22mm Blue 220VAC |
| EKLD-22DS-B-220D | LED Indicator General type 22mm Blue 220VDC |
| EKLD-22DS-B-230 | LED Indicator General type 22mm Blue 230VAC |
| EKLD-22DS-B-380 | LED Indicator General type 22mm Blue 380VAC |
| EKLD-22DS-W-12 | LED Indicator General type 22mm White 12VAC/DC |
| EKLD-22DS-W-24 | LED Indicator General type 22mm White 24VAC/DC |
| EKLD-22DS-W-48 | LED Indicator General type 22mm White 48VAC/DC |
| EKLD-22DS-W-110 | LED Indicator General type 22mm White 110VAC/DC |
| EKLD-22DS-W-220 | LED Indicator General type 22mm White 220VAC |
| EKLD-22DS-W-220D | LED Indicator General type 22mm White 220VDC |
| EKLD-22DS-W-230 | LED Indicator General type 22mm White 230VAC |
| EKLD-22DS-W-380 | LED Indicator General type 22mm White 380VAC |
| EKLD-22DKS-R-12 | LED Indicator Anti-interference type 22mm Red 12VAC/DC |
| EKLD-22DKS-R-24 | LED Indicator Anti-interference type 22mm Red 24VAC/DC |
| EKLD-22DKS-R-48 | LED Indicator Anti-interference type 22mm Red 48VAC/DC |
| EKLD-22DKS-R-110 | LED Indicator Anti-interference type 22mm Red 110VAC/DC |
| EKLD-22DKS-R-220 | LED Indicator Anti-interference type 22mm Red 220VAC |
| EKLD-22DKS-R-220D | LED Indicator Anti-interference type 22mm Red 220VDC |
| EKLD-22DKS-R-230 | LED Indicator Anti-interference type 22mm Red 230VAC |
| EKLD-22DKS-R-380 | LED Indicator Anti-interference type 22mm Red 380VAC |
| EKLD-22DKS-Y-12 | LED Indicator Anti-interference type 22mm Yellow 12VAC/DC |
| EKLD-22DKS-Y-24 | LED Indicator Anti-interference type 22mm Yellow 24VAC/DC |
| EKLD-22DKS-Y-48 | LED Indicator Anti-interference type 22mm Yellow 48VAC/DC |
| EKLD-22DKS-Y-110 | LED Indicator Anti-interference type 22mm Yellow 110VAC/DC |
| EKLD-22DKS-Y-220 | LED Indicator Anti-interference type 22mm Yellow 220VAC |
| EKLD-22DKS-Y-220D | LED Indicator Anti-interference type 22mm Yellow 220VDC |
| EKLD-22DKS-Y-230 | LED Indicator Anti-interference type 22mm Yellow 230VAC |
| EKLD-22DKS-Y-380 | LED Indicator Anti-interference type 22mm Yellow 380VAC |
| EKLD-22DKS-G-12 | LED Indicator Anti-interference type 22mm Green 12VAC/DC |
| EKLD-22DKS-G-24 | LED Indicator Anti-interference type 22mm Green 24VAC/DC |
| EKLD-22DKS-G-48 | LED Indicator Anti-interference type 22mm Green 48VAC/DC |
| EKLD-22DKS-G-110 | LED Indicator Anti-interference type 22mm Green 110VAC/DC |
| EKLD-22DKS-G-220 | LED Indicator Anti-interference type 22mm Green 220VAC |
| EKLD-22DKS-G-220D | LED Indicator Anti-interference type 22mm Green 220VDC |
| EKLD-22DKS-G-230 | LED Indicator Anti-interference type 22mm Green 230VAC |
| EKLD-22DKS-G-380 | LED Indicator Anti-interference type 22mm Green 380VAC |
| EKLD-22DKS-B-12 | LED Indicator Anti-interference type 22mm Blue 12VAC/DC |
| EKLD-22DKS-B-24 | LED Indicator Anti-interference type 22mm Blue 24VAC/DC |
| EKLD-22DKS-B-48 | LED Indicator Anti-interference type 22mm Blue 48VAC/DC |
| EKLD-22DKS-B-110 | LED Indicator Anti-interference type 22mm Blue 110VAC/DC |
| EKLD-22DKS-B-220 | LED Indicator Anti-interference type 22mm Blue 220VAC |
| EKLD-22DKS-B-220D | LED Indicator Anti-interference type 22mm Blue 220VDC |
| EKLD-22DKS-B-230 | LED Indicator Anti-interference type 22mm Blue 230VAC |
| EKLD-22DKS-B-380 | LED Indicator Anti-interference type 22mm Blue 380VAC |
| EKLD-22DKS-W-12 | LED Indicator Anti-interference type 22mm White 12VAC/DC |
| EKLD-22DKS-W-24 | LED Indicator Anti-interference type 22mm White 24VAC/DC |
| EKLD-22DKS-W-48 | LED Indicator Anti-interference type 22mm White 48VAC/DC |
| EKLD-22DKS-W-110 | LED Indicator Anti-interference type 22mm White 110VAC/DC |
| EKLD-22DKS-W-220 | LED Indicator Anti-interference type 22mm White 220VAC |
| EKLD-22DKS-W-220D | LED Indicator Anti-interference type 22mm White 220VDC |
| EKLD-22DKS-W-230 | LED Indicator Anti-interference type 22mm White 230VAC |
| EKLD-22DKS-W-380 | LED Indicator Anti-interference type 22mm White 380VAC |
| EKLD-22DFS-R-12 | LED Indicator Discharge type 22mm Red 12VAC/DC |
| EKLD-22DFS-R-24 | LED Indicator Discharge type 22mm Red 24VAC/DC |
| EKLD-22DFS-R-48 | LED Indicator Discharge type 22mm Red 48VAC/DC |
| EKLD-22DFS-R-110 | LED Indicator Discharge type 22mm Red 110VAC/DC |
| EKLD-22DFS-R-220 | LED Indicator Discharge type 22mm Red 220VAC |
| EKLD-22DFS-R-220D | LED Indicator Discharge type 22mm Red 220VDC |
| EKLD-22DFS-R-230 | LED Indicator Discharge type 22mm Red 230VAC |
| EKLD-22DFS-R-380 | LED Indicator Discharge type 22mm Red 380VAC |
| EKLD-22DFS-Y-12 | LED Indicator Discharge type 22mm Yellow 12VAC/DC |
| EKLD-22DFS-Y-24 | LED Indicator Discharge type 22mm Yellow 24VAC/DC |
| EKLD-22DFS-Y-48 | LED Indicator Discharge type 22mm Yellow 48VAC/DC |
| EKLD-22DFS-Y-110 | LED Indicator Discharge type 22mm Yellow 110VAC/DC |
| EKLD-22DFS-Y-220 | LED Indicator Discharge type 22mm Yellow 220VAC |
| EKLD-22DFS-Y-220D | LED Indicator Discharge type 22mm Yellow 220VDC |
| EKLD-22DFS-Y-230 | LED Indicator Discharge type 22mm Yellow 230VAC |
| EKLD-22DFS-Y-380 | LED Indicator Discharge type 22mm Yellow 380VAC |
| EKLD-22DFS-G-12 | LED Indicator Discharge type 22mm Green 12VAC/DC |
| EKLD-22DFS-G-24 | LED Indicator Discharge type 22mm Green 24VAC/DC |
| EKLD-22DFS-G-48 | LED Indicator Discharge type 22mm Green 48VAC/DC |
| EKLD-22DFS-G-110 | LED Indicator Discharge type 22mm Green 110VAC/DC |
| EKLD-22DFS-G-220 | LED Indicator Discharge type 22mm Green 220VAC |
| EKLD-22DFS-G-220D | LED Indicator Discharge type 22mm Green 220VDC |
| EKLD-22DFS-G-230 | LED Indicator Discharge type 22mm Green 230VAC |
| EKLD-22DFS-G-380 | LED Indicator Discharge type 22mm Green 380VAC |
| EKLD-22DFS-B-12 | LED Indicator Discharge type 22mm Blue 12VAC/DC |
| EKLD-22DFS-B-24 | LED Indicator Discharge type 22mm Blue 24VAC/DC |
| EKLD-22DFS-B-48 | LED Indicator Discharge type 22mm Blue 48VAC/DC |
| EKLD-22DFS-B-110 | LED Indicator Discharge type 22mm Blue 110VAC/DC |
| EKLD-22DFS-B-220 | LED Indicator Discharge type 22mm Blue 220VAC |
| EKLD-22DFS-B-220D | LED Indicator Discharge type 22mm Blue 220VDC |
| EKLD-22DFS-B-230 | LED Indicator Discharge type 22mm Blue 230VAC |
| EKLD-22DFS-B-380 | LED Indicator Discharge type 22mm Blue 380VAC |
| EKLD-22DFS-W-12 | LED Indicator Discharge type 22mm White 12VAC/DC |
| EKLD-22DFS-W-24 | LED Indicator Discharge type 22mm White 24VAC/DC |
| EKLD-22DFS-W-48 | LED Indicator Discharge type 22mm White 48VAC/DC |
| EKLD-22DFS-W-110 | LED Indicator Discharge type 22mm White 110VAC/DC |
| EKLD-22DFS-W-220 | LED Indicator Discharge type 22mm White 220VAC |
| EKLD-22DFS-W-220D | LED Indicator Discharge type 22mm White 220VDC |
| EKLD-22DFS-W-230 | LED Indicator Discharge type 22mm White 230VAC |
| EKLD-22DFS-W-380 | LED Indicator Discharge type 22mm White 380VAC |
| EKLD-22DRG-12 | LED Indicator Double Colour type 22mm Red/Green 12VAC/DC |
| EKLD-22DRG-24 | LED Indicator Double Colour type 22mm Red/Green 24VAC/DC |
| EKLD-22DRG-48 | LED Indicator Double Colour type 22mm Red/Green 48VAC/DC |
| EKLD-22DRG-110 | LED Indicator Double Colour type 22mm Red/Green 110VAC/DC |
| EKLD-22DRG-220 | LED Indicator Double Colour type 22mm Red/Green 220VAC |
| EKLD-22DRG-220D | LED Indicator Double Colour type 22mm Red/Green 220VDC |
| EKLD-22DRG-230 | LED Indicator Double Colour type 22mm Red/Green 230VAC |
| EKLD-22DRG-380 | LED Indicator Double Colour type 22mm Red/Green 380VAC |
| EKLD-22DRB-12 | LED Indicator Double Colour type 22mm Red/Blue 12VAC/DC |
| EKLD-22DRB-24 | LED Indicator Double Colour type 22mm Red/Blue 24VAC/DC |
| EKLD-22DRB-48 | LED Indicator Double Colour type 22mm Red/Blue 48VAC/DC |
| EKLD-22DRB-110 | LED Indicator Double Colour type 22mm Red/Blue 110VAC/DC |
| EKLD-22DRB-220 | LED Indicator Double Colour type 22mm Red/Blue 220VAC |
| EKLD-22DRB-220D | LED Indicator Double Colour type 22mm Red/Blue 220VDC |
| EKLD-22DRB-230 | LED Indicator Double Colour type 22mm Red/Blue 230VAC |
| EKLD-22DRB-380 | LED Indicator Double Colour type 22mm Red/Blue 380VAC |
| EKLD-22MSD-R-12 | LED Indicator Flash Buzzer type 22mm Red 12VAC/DC |
| EKLD-22MSD-R-24 | LED Indicator Flash Buzzer type 22mm Red 24VAC/DC |
| EKLD-22MSD-R-48 | LED Indicator Flash Buzzer type 22mm Red 48VAC/DC |
| EKLD-22MSD-R-110 | LED Indicator Flash Buzzer type 22mm Red 110VAC/DC |
| EKLD-22MSD-R-220 | LED Indicator Flash Buzzer type 22mm Red 220VAC |
| EKLD-22MSD-R-220D | LED Indicator Flash Buzzer type 22mm Red 220VDC |
| EKLD-22MSD-R-230 | LED Indicator Flash Buzzer type 22mm Red 230VAC |
| EKLD-22MSD-R-380 | LED Indicator Flash Buzzer type 22mm Red 380VAC |
| EKLD-22MFD-B-12 | LED Indicator Buzzer type 22mm Black 12VAC/DC |
| EKLD-22MFD-B-24 | LED Indicator Buzzer type 22mm Black 24VAC/DC |
| EKLD-22MFD-B-48 | LED Indicator Buzzer type 22mm Black 48VAC/DC |
| EKLD-22MFD-B-110 | LED Indicator Buzzer type 22mm Black 110VAC/DC |
| EKLD-22MFD-B-220 | LED Indicator Buzzer type 22mm Black 220VAC |
| EKLD-22MFD-B-220D | LED Indicator Buzzer type 22mm Black 220VDC |
| EKLD-22MFD-B-230 | LED Indicator Buzzer type 22mm Black 230VAC |
| EKLD-22MFD-B-380 | LED Indicator Buzzer type 22mm Black 380VAC |
| EKLD-22DLT-R-12 | LED Indicator Lamp Test type 22mm Red 12VAC/DC |
| EKLD-22DLT-R-24 | LED Indicator Lamp Test type 22mm Red 24VAC/DC |
| EKLD-22DLT-R-48 | LED Indicator Lamp Test type 22mm Red 48VAC/DC |
| EKLD-22DLT-R-110 | LED Indicator Lamp Test type 22mm Red 110VAC/DC |
| EKLD-22DLT-R-220 | LED Indicator Lamp Test type 22mm Red 220VAC |
| EKLD-22DLT-R-220D | LED Indicator Lamp Test type 22mm Red 220VDC |
| EKLD-22DLT-R-230 | LED Indicator Lamp Test type 22mm Red 230VAC |
| EKLD-22DLT-R-380 | LED Indicator Lamp Test type 22mm Red 380VAC |
| EKLD-22DLT-Y-12 | LED Indicator Lamp Test type 22mm Yellow 12VAC/DC |
| EKLD-22DLT-Y-24 | LED Indicator Lamp Test type 22mm Yellow 24VAC/DC |
| EKLD-22DLT-Y-48 | LED Indicator Lamp Test type 22mm Yellow 48VAC/DC |
| EKLD-22DLT-Y-110 | LED Indicator Lamp Test type 22mm Yellow 110VAC/DC |
| EKLD-22DLT-Y-220 | LED Indicator Lamp Test type 22mm Yellow 220VAC |
| EKLD-22DLT-Y-220D | LED Indicator Lamp Test type 22mm Yellow 220VDC |
| EKLD-22DLT-Y-230 | LED Indicator Lamp Test type 22mm Yellow 230VAC |
| EKLD-22DLT-Y-380 | LED Indicator Lamp Test type 22mm Yellow 380VAC |
| EKLD-22DLT-G-12 | LED Indicator Lamp Test type 22mm Green 12VAC/DC |
| EKLD-22DLT-G-24 | LED Indicator Lamp Test type 22mm Green 24VAC/DC |
| EKLD-22DLT-G-48 | LED Indicator Lamp Test type 22mm Green 48VAC/DC |
| EKLD-22DLT-G-110 | LED Indicator Lamp Test type 22mm Green 110VAC/DC |
| EKLD-22DLT-G-220 | LED Indicator Lamp Test type 22mm Green 220VAC |
| EKLD-22DLT-G-220D | LED Indicator Lamp Test type 22mm Green 220VDC |
| EKLD-22DLT-G-230 | LED Indicator Lamp Test type 22mm Green 230VAC |
| EKLD-22DLT-G-380 | LED Indicator Lamp Test type 22mm Green 380VAC |
| EKLD-22DLT-B-12 | LED Indicator Lamp Test type 22mm Blue 12VAC/DC |
| EKLD-22DLT-B-24 | LED Indicator Lamp Test type 22mm Blue 24VAC/DC |
| EKLD-22DLT-B-48 | LED Indicator Lamp Test type 22mm Blue 48VAC/DC |
| EKLD-22DLT-B-110 | LED Indicator Lamp Test type 22mm Blue 110VAC/DC |
| EKLD-22DLT-B-220 | LED Indicator Lamp Test type 22mm Blue 220VAC |
| EKLD-22DLT-B-220D | LED Indicator Lamp Test type 22mm Blue 220VDC |
| EKLD-22DLT-B-230 | LED Indicator Lamp Test type 22mm Blue 230VAC |
| EKLD-22DLT-B-380 | LED Indicator Lamp Test type 22mm Blue 380VAC |
| EKLD-22DLT-W-12 | LED Indicator Lamp Test type 22mm White 12VAC/DC |
| EKLD-22DLT-W-24 | LED Indicator Lamp Test type 22mm White 24VAC/DC |
| EKLD-22DLT-W-48 | LED Indicator Lamp Test type 22mm White 48VAC/DC |
| EKLD-22DLT-W-110 | LED Indicator Lamp Test type 22mm White 110VAC/DC |
| EKLD-22DLT-W-220 | LED Indicator Lamp Test type 22mm White 220VAC |
| EKLD-22DLT-W-220D | LED Indicator Lamp Test type 22mm White 220VDC |
| EKLD-22DLT-W-230 | LED Indicator Lamp Test type 22mm White 230VAC |
| EKLD-22DLT-W-380 | LED Indicator Lamp Test type 22mm White 380VAC |
United States (English)
Russia (Pусский)
France (Français)
China (中文)
Spain (Español)
Germany (Deutsch)
Portugal (Português)
Slovakia (slovenský jazyk)
Australia (English)
New Zealand (English)
