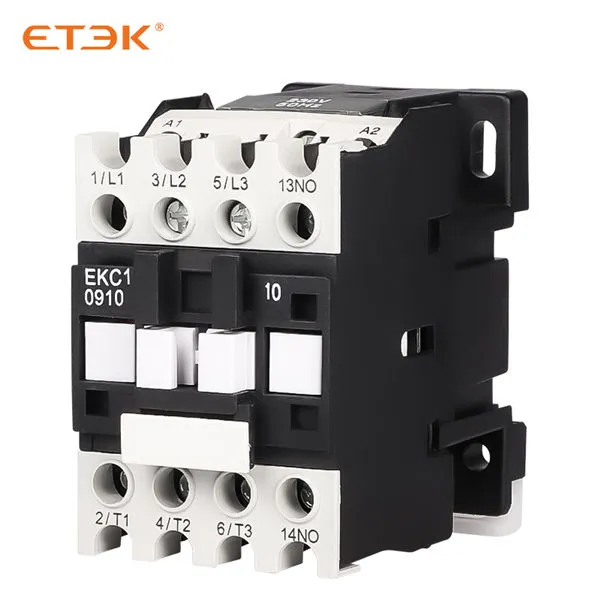

Contacteur magnétique AC EKC1 9~95A

Les contacteurs CA sont utilisés pour connecter/déconnecter la ligne et pour contrôler fréquemment les moteurs et autres équipements. Il contrôle le courant élevé avec un courant faible et joue un certain rôle dans la protection contre les surcharges lors du fonctionnement avec le relais thermique.

Renseignez-vous maintenant PDF(Document actuellement disponible en anglais uniquement)

Contacteur magnétique AC EKC1 9~95A

Renseignez-vous maintenant PDF
Présentation du produit
Paramètres techniques
Télécharger les fichiers
Produits recommandés
Enquête

Présentation du produit

Description

Les contacteurs CA sont utilisés pour connecter/déconnecter la ligne et pour contrôler fréquemment les moteurs et autres équipements. Il contrôle le courant élevé avec un courant faible et joue un certain rôle dans la protection contre les surcharges lors du fonctionnement avec le relais thermique.

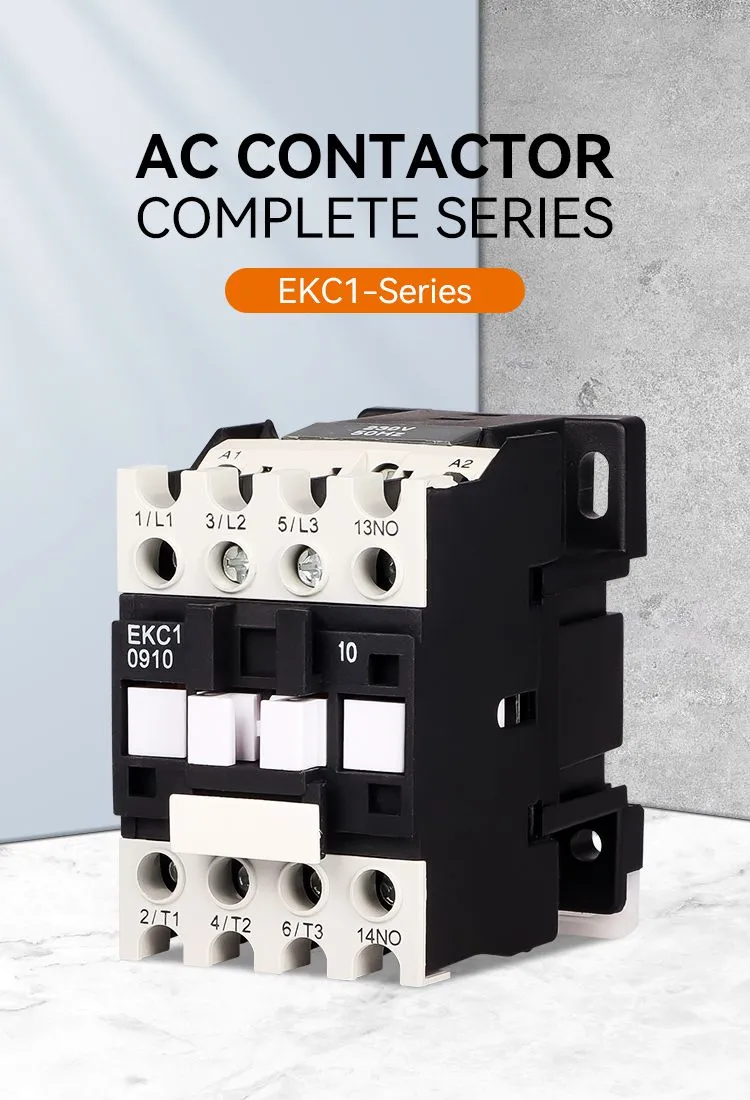

Contacteur EKC1-ac-0910

Caractéristiques du contacteur ekc1-ac

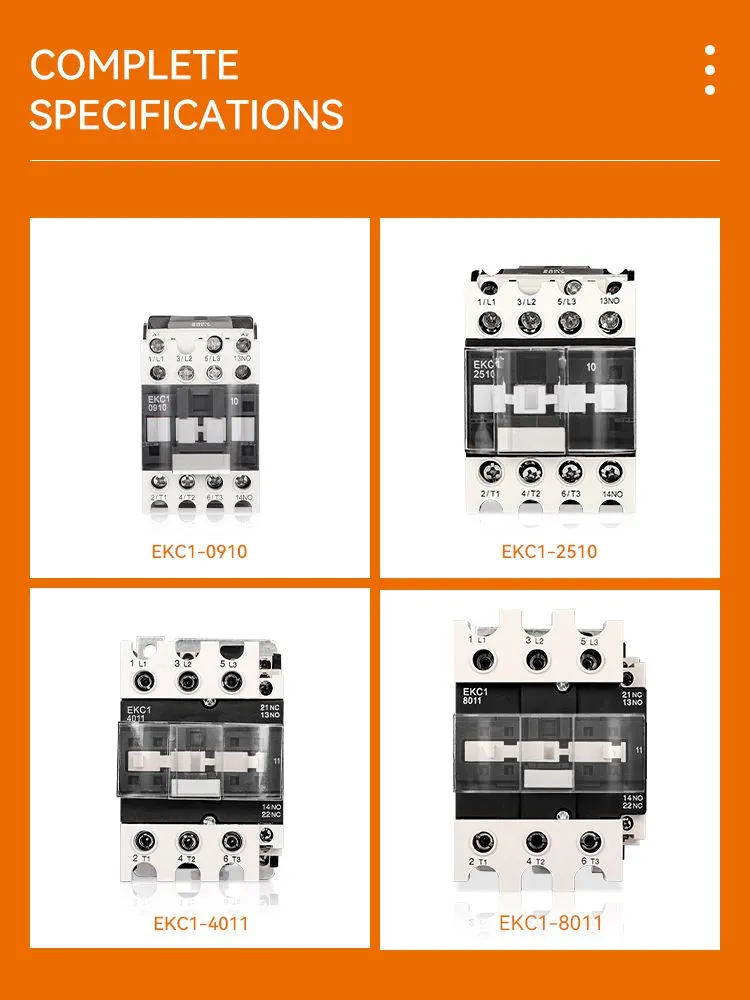

Différents types de contacteurs AC

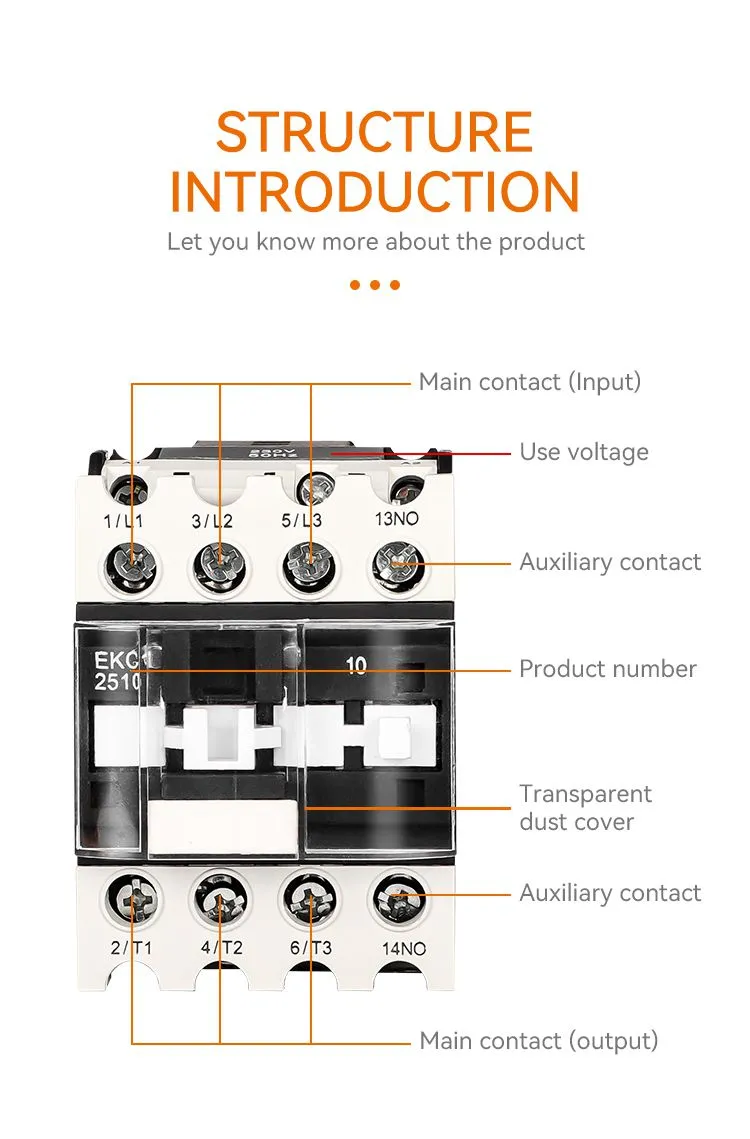

Structure du contacteur ekc1-ac-introduction

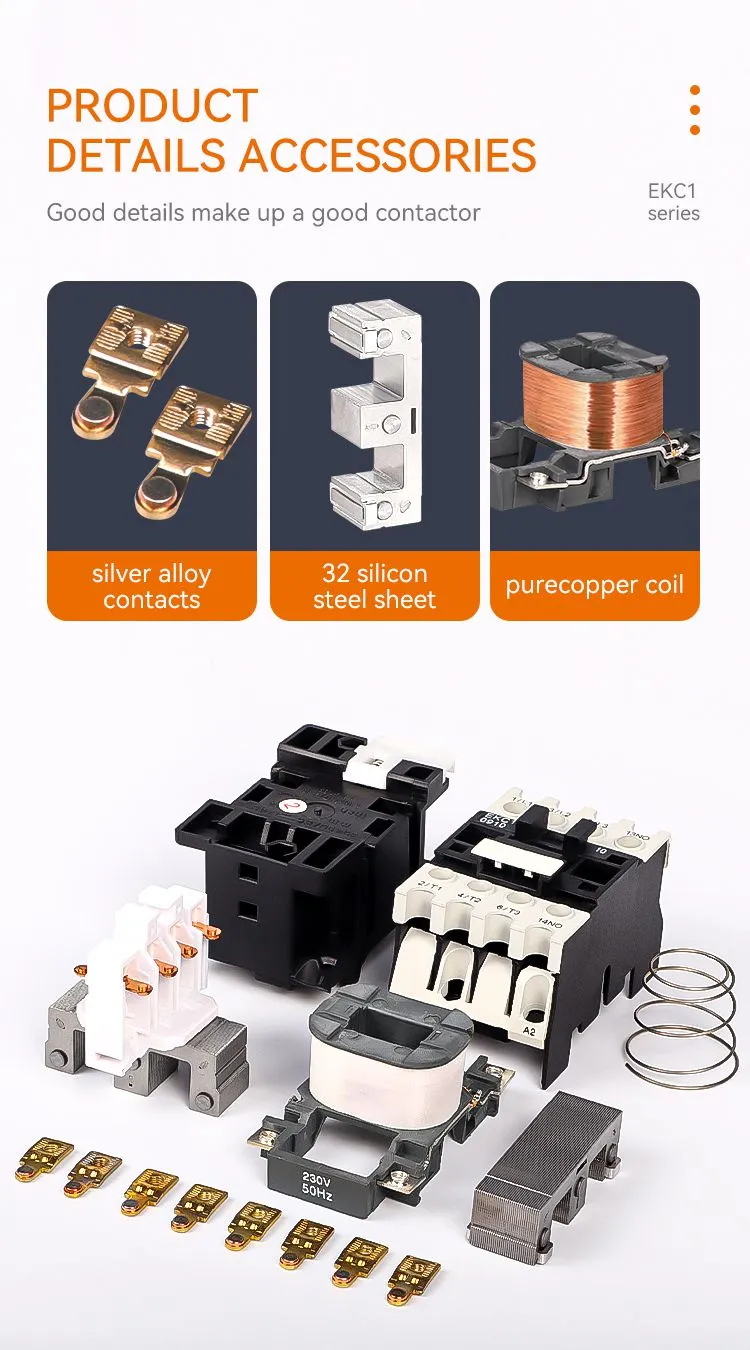

accessoires-contacteur-ac

Application circuits de fermeture et de coupure à distance
protéger le circuit contre les surcharges lors de l'assemblage avec un relais de surcharge thermique
démarrage fréquent et contrôle du contacteur AC
Valeur électrique CA 50/60 Hz, 690 V, jusqu'à 95 A
Catégorie d'utilisation AC-3, AC-4
Altitude ≤2000m
Température ambiante -5℃~+40℃
Catégorie de montage III
Conditions de montage l'inclinaison entre le plan de montage et le plan vertical ne doit pas dépasser ±5°
Standard CEI/EN 60947-4-1. CEI/EN 60947-5-1.

Fonctionnement de la bobine CA
Volts (VCA) 24 36 42 48 110 127 220 230 240 380 415 440 480 500 600
Code 50 Hz B5 C5 D5 E5 F5 G5 M5 P5 U5 Q5 N5 R5 - S5 Y5
60 Hz B6 - D6 E6 F6 G6 M6 0 U6 Q6 0 R6 T6 - -
50/60 Hz B7 - D7 E7 F7 - M7 - Q7 R7 - - -
Fonctionnement de la bobine CC
Volts (VCC) 12 24 36 48 110 220
Code JD BD CD ED FD MARYLAND
  Désignation du type
CE C 1 09 11 Z
Code de l'entreprise
 Contacteur
Séquence de conception N°
Spécification de base, exprimée avec le courant nominal de fonctionnement (380V/400V, AC3)
Nombre de contacts
10 : 3 contacts principaux N/O + 1 contact auxiliaire N/O (9 A, 12 A, 18 A, 25 A, 32 A)
01 : 3 contacts principaux N/O + 1 contact auxiliaire N/C (9 A, 12 A, 18 A, 25 A, 32 A)
11 : 3 contacts principaux N/O + 1 contact auxiliaire N/O et 1 contact auxiliaire O/C (9A, 12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A)
04 : 4 contacts principaux N/O (9 A, 12 A, 25 A, 40 A, 50 A, 65 A, 80 A, 95 A)
08 : 2 contacts principaux N/O et 2 contacts principaux N/C (9A, 12A, 25A, 40A, 50A, 65A, 80A, 95A)
Z : Fonctionnement en courant continu Vide : Fonctionnement en courant alternatif

Paramètres techniques

Données techniques

Standard CEI/EN60947-4-1 CEI/EN60947-5-1
Modèle n° EKC1-09 EKC1-12 EKC1-18 EKC1-25 EKC1-32 EKC1-40 EKC1-50 EKC1-65 EKC1-80 EKC1-95
Courant nominal de chauffage conventionnel Ith(A) 20 20 32 40 50 60 80 80 100 125
Tension nominale Ui(V) Interface utilisateur (V) 690
Courant de fonctionnement nominal
Ue=380/415V		 AC-3 Ie(A) 9 12 18 25 32 40 50 65 80 95
AC-4 Ie(A) 3.5 5 7.7 8.5 12 18,5 24 28 37 44
Contrôle de puissance triphasé
Moteur à cage AC-3		 220/240V kW 2.2 3 4 5.5 7.5 11 15 18,5 22 25
380/415V kW 4 5.5 7.5 11 15 18,5 22 30 37 45
660/690V kW 5.5 7.5 10 15 18,5 30 33 37 45 45
AC-3 1000 1000 1000 1000 800 800 600 600 600 600
Durée de vie électrique (x103 opérations) AC-4 200 200 200 200 200 150 150 150 100 100
Durée de vie mécanique (x106 opérations) 10 10 10 10 8 8 8 8 6 6
Fusible assorti Taille RT16-00
UN 20 20 32 40 50 63 80 80 100 125
Circuit principal 3P ou 4P
Circuit auxiliaire Cat.:AC-15,
Ue=415V Ie=0.95A Ith=10A		 1NO / 1NF / 1NO + 1NF
Connexion du terminal
Modèle Section de câblage (Cu)
taille de la vis
Couple de serrage (Nm)
Nombre de pièces : Câble flexible avec douille pressée à froid (mm2) Câble flexible sans douille pressée à froid (mm2) Câble rigide (mm2)
EKC1-09 1~2 2.5 4 4 M3.5 0,8
EKC1-12 1~2 2.5 4 4 M3.5 0,8
EKC1-18 1~2 4 6 6 M3.5 0,8
EKC1-25 1 4 10 6 M4 1.2
2 4 6 6 M4 1.2
EKC1-32 1 4 10 6 M4 1.2
2 4 6 6 M4 1.2
EKC1-40 1 10 16 10 M4 3.5
2 10 10 10 M8 3.5
EKC1-50 1 16 25 25 M8 3.5
2 16 16 - M8 3.5
EKC1-65 1 16 25 25 M8 3.5
2 16 16 - M8 3.5
EKC1-80 1 50 50 50 M8 3.5
2 25 35 - M10 4
EKC1-95 1 50 50 50 M10 4
2 25 35 - M10 4

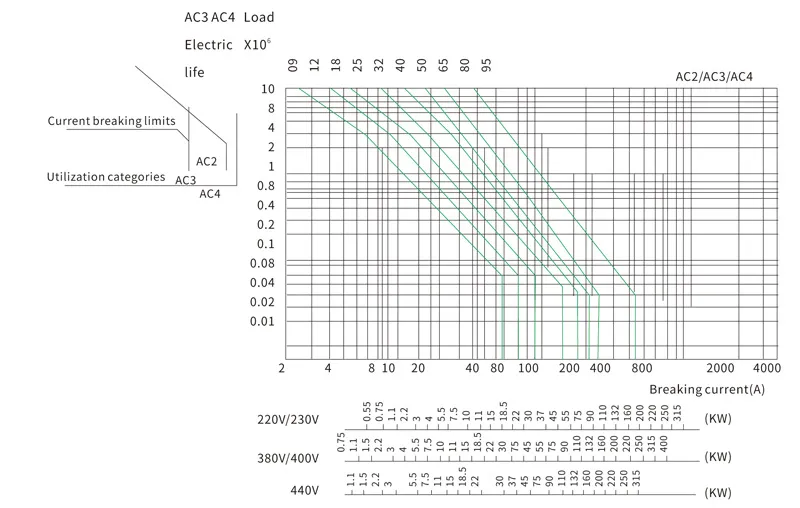

Courbe du contacteur

Dimensions

EKC1-09~32
EKC1-40~95
EKC1-09Z~32Z
EKC1-40Z~95Z
Un maximum B max C max D max E max un b Φ L P S
EKC1-09(Z)~12(Z) 47 76 82(116) 125,5(160,5) 140,5(174,5) 34/35 50/60 4.5 60(95) 10.5 8.6
EKC1-18(Z) 47 76 87(122) 120,5(154,5) 145,5(180,5) 34/35 50/60 4.5 61(96) 11.3 10.4
EKC1-25(Z) 57 86 95(131) 133,5(169,5) 153,5 (189,5) 40 48 4.5 70(107) 13.2 11.7
EKC1-32(Z) 57 86 100(138) 138,5(176,5) 158,5(196,5) 40 48 4.5 71,6(120) 14.5 13
EKC1-4011(Z)~6511(Z) 77 129 116(173) 154,5(211,5) 174,5(231,5) 40 100/110 6.5 78(135) 20 8.6
EKC1-4004/4008(Z)
~6504/6508(Z)		 84 129 116(173) 154,5(211,5) 174,5(231,5) 40 100/110 6.5 78(135) 20 8.6
EKC1-8011(Z)~9511(Z) 87 129 127(183) 165,5(226,5) 185,5(246,5) 40 100/110 6.5 83(140) 23,5 12
EKC1-8004/8008(Z)
~9504/9508(Z)		 96 129 127(183) 160,5(221,5) 180,5(241,5) 40 100/110 6.5 83(140) 23,5 12

Note:

1. L : dans le circuit principal, la distance entre les bornes et la plaque ;
2. P : dans le circuit principal, la distance entre deux phases ;
3. S : dans le circuit principal, la largeur de la plaque de contact

Formulaire de sélection de produits

Reference No. Specification
AC Coil
EKC1-0910-24 Contactor 4KW AC3 9A 3P+1NO Coil 24VAC
EKC1-0910-42 Contactor 4KW AC3 9A 3P+1NO Coil 42VAC
EKC1-0910-48 Contactor 4KW AC3 9A 3P+1NO Coil 48VAC
EKC1-0910-110 Contactor 4KW AC3 9A 3P+1NO Coil 110VAC
EKC1-0910-120 Contactor 4KW AC3 9A 3P+1NO Coil 120VAC
EKC1-0910-220 Contactor 4KW AC3 9A 3P+1NO Coil 220VAC
EKC1-0910-230 Contactor 4KW AC3 9A 3P+1NO Coil 230VAC
EKC1-0910-240 Contactor 4KW AC3 9A 3P+1NO Coil 240VAC
EKC1-0910-380 Contactor 4KW AC3 9A 3P+1NO Coil 380VAC
EKC1-0910-415 Contactor 4KW AC3 9A 3P+1NO Coil 415VAC
EKC1-0901-24 Contactor 4KW AC3 9A 3P+1NC Coil 24VAC
EKC1-0901-42 Contactor 4KW AC3 9A 3P+1NC Coil 42VAC
EKC1-0901-48 Contactor 4KW AC3 9A 3P+1NC Coil 48VAC
EKC1-0901-110 Contactor 4KW AC3 9A 3P+1NC Coil 110VAC
EKC1-0901-120 Contactor 4KW AC3 9A 3P+1NC Coil 120VAC
EKC1-0901-220 Contactor 4KW AC3 9A 3P+1NC Coil 220VAC
EKC1-0901-230 Contactor 4KW AC3 9A 3P+1NC Coil 230VAC
EKC1-0901-240 Contactor 4KW AC3 9A 3P+1NC Coil 240VAC
EKC1-0901-380 Contactor 4KW AC3 9A 3P+1NC Coil 380VAC
EKC1-0901-415 Contactor 4KW AC3 9A 3P+1NC Coil 415VAC
EKC1-0911-24 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 24VAC
EKC1-0911-42 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 42VAC
EKC1-0911-48 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 48VAC
EKC1-0911-110 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 110VAC
EKC1-0911-120 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 120VAC
EKC1-0911-220 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 220VAC
EKC1-0911-230 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 230VAC
EKC1-0911-240 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 240VAC
EKC1-0911-380 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 380VAC
EKC1-0911-415 Contactor 4KW AC3 9A 3P+1NO+1NC Coil 415VAC
EKC1-1210-24 Contactor 5.5KW AC3 12A 3P+1NO Coil 24VAC
EKC1-1210-42 Contactor 5.5KW AC3 12A 3P+1NO Coil 42VAC
EKC1-1210-48 Contactor 5.5KW AC3 12A 3P+1NO Coil 48VAC
EKC1-1210-110 Contactor 5.5KW AC3 12A 3P+1NO Coil 110VAC
EKC1-1210-120 Contactor 5.5KW AC3 12A 3P+1NO Coil 120VAC
EKC1-1210-220 Contactor 5.5KW AC3 12A 3P+1NO Coil 220VAC
EKC1-1210-230 Contactor 5.5KW AC3 12A 3P+1NO Coil 230VAC
EKC1-1210-240 Contactor 5.5KW AC3 12A 3P+1NO Coil 240VAC
EKC1-1210-380 Contactor 5.5KW AC3 12A 3P+1NO Coil 380VAC
EKC1-1210-415 Contactor 5.5KW AC3 12A 3P+1NO Coil 415VAC
EKC1-1201-24 Contactor 5.5KW AC3 12A 3P+1NC Coil 24VAC
EKC1-1201-42 Contactor 5.5KW AC3 12A 3P+1NC Coil 42VAC
EKC1-1201-48 Contactor 5.5KW AC3 12A 3P+1NC Coil 48VAC
EKC1-1201-110 Contactor 5.5KW AC3 12A 3P+1NC Coil 110VAC
EKC1-1201-120 Contactor 5.5KW AC3 12A 3P+1NC Coil 120VAC
EKC1-1201-220 Contactor 5.5KW AC3 12A 3P+1NC Coil 220VAC
EKC1-1201-230 Contactor 5.5KW AC3 12A 3P+1NC Coil 230VAC
EKC1-1201-240 Contactor 5.5KW AC3 12A 3P+1NC Coil 240VAC
EKC1-1201-380 Contactor 5.5KW AC3 12A 3P+1NC Coil 380VAC
EKC1-1201-415 Contactor 5.5KW AC3 12A 3P+1NC Coil 415VAC
EKC1-1211-24 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 24VAC
EKC1-1211-42 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 42VAC
EKC1-1211-48 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 48VAC
EKC1-1211-110 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 110VAC
EKC1-1211-120 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 120VAC
EKC1-1211-220 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 220VAC
EKC1-1211-230 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 230VAC
EKC1-1211-240 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 240VAC
EKC1-1211-380 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 380VAC
EKC1-1211-415 Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 415VAC
EKC1-1810-24 Contactor 7.5KW AC3 18A 3P+1NO Coil 24VAC
EKC1-1810-42 Contactor 7.5KW AC3 18A 3P+1NO Coil 42VAC
EKC1-1810-48 Contactor 7.5KW AC3 18A 3P+1NO Coil 48VAC
EKC1-1810-110 Contactor 7.5KW AC3 18A 3P+1NO Coil 110VAC
EKC1-1810-120 Contactor 7.5KW AC3 18A 3P+1NO Coil 120VAC
EKC1-1810-220 Contactor 7.5KW AC3 18A 3P+1NO Coil 220VAC
EKC1-1810-230 Contactor 7.5KW AC3 18A 3P+1NO Coil 230VAC
EKC1-1810-240 Contactor 7.5KW AC3 18A 3P+1NO Coil 240VAC
EKC1-1810-380 Contactor 7.5KW AC3 18A 3P+1NO Coil 380VAC
EKC1-1810-415 Contactor 7.5KW AC3 18A 3P+1NO Coil 415VAC
EKC1-1801-24 Contactor 7.5KW AC3 18A 3P+1NC Coil 24VAC
EKC1-1801-42 Contactor 7.5KW AC3 18A 3P+1NC Coil 42VAC
EKC1-1801-48 Contactor 7.5KW AC3 18A 3P+1NC Coil 48VAC
EKC1-1801-110 Contactor 7.5KW AC3 18A 3P+1NC Coil 110VAC
EKC1-1801-120 Contactor 7.5KW AC3 18A 3P+1NC Coil 120VAC
EKC1-1801-220 Contactor 7.5KW AC3 18A 3P+1NC Coil 220VAC
EKC1-1801-230 Contactor 7.5KW AC3 18A 3P+1NC Coil 230VAC
EKC1-1801-240 Contactor 7.5KW AC3 18A 3P+1NC Coil 240VAC
EKC1-1801-380 Contactor 7.5KW AC3 18A 3P+1NC Coil 380VAC
EKC1-1801-415 Contactor 7.5KW AC3 18A 3P+1NC Coil 415VAC
EKC1-1811-24 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 24VAC
EKC1-1811-42 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 42VAC
EKC1-1811-48 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 48VAC
EKC1-1811-110 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 110VAC
EKC1-1811-120 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 120VAC
EKC1-1811-220 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 220VAC
EKC1-1811-230 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 230VAC
EKC1-1811-240 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 240VAC
EKC1-1811-380 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 380VAC
EKC1-1811-415 Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 415VAC
EKC1-2510-24 Contactor 11KW AC3 25A 3P+1NO Coil 24VAC
EKC1-2510-42 Contactor 11KW AC3 25A 3P+1NO Coil 42VAC
EKC1-2510-48 Contactor 11KW AC3 25A 3P+1NO Coil 48VAC
EKC1-2510-110 Contactor 11KW AC3 25A 3P+1NO Coil 110VAC
EKC1-2510-120 Contactor 11KW AC3 25A 3P+1NO Coil 120VAC
EKC1-2510-220 Contactor 11KW AC3 25A 3P+1NO Coil 220VAC
EKC1-2510-230 Contactor 11KW AC3 25A 3P+1NO Coil 230VAC
EKC1-2510-240 Contactor 11KW AC3 25A 3P+1NO Coil 240VAC
EKC1-2510-380 Contactor 11KW AC3 25A 3P+1NO Coil 380VAC
EKC1-2510-415 Contactor 11KW AC3 25A 3P+1NO Coil 415VAC
EKC1-2501-24 Contactor 11KW AC3 25A 3P+1NC Coil 24VAC
EKC1-2501-42 Contactor 11KW AC3 25A 3P+1NC Coil 42VAC
EKC1-2501-48 Contactor 11KW AC3 25A 3P+1NC Coil 48VAC
EKC1-2501-110 Contactor 11KW AC3 25A 3P+1NC Coil 110VAC
EKC1-2501-120 Contactor 11KW AC3 25A 3P+1NC Coil 120VAC
EKC1-2501-220 Contactor 11KW AC3 25A 3P+1NC Coil 220VAC
EKC1-2501-230 Contactor 11KW AC3 25A 3P+1NC Coil 230VAC
EKC1-2501-240 Contactor 11KW AC3 25A 3P+1NC Coil 240VAC
EKC1-2501-380 Contactor 11KW AC3 25A 3P+1NC Coil 380VAC
EKC1-2501-415 Contactor 11KW AC3 25A 3P+1NC Coil 415VAC
EKC1-2511-24 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 24VAC
EKC1-2511-42 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 42VAC
EKC1-2511-48 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 48VAC
EKC1-2511-110 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 110VAC
EKC1-2511-120 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 120VAC
EKC1-2511-220 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 220VAC
EKC1-2511-230 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 230VAC
EKC1-2511-240 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 240VAC
EKC1-2511-380 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 380VAC
EKC1-2511-415 Contactor 11KW AC3 25A 3P+1NO+1NC Coil 415VAC
EKC1-3210-24 Contactor 15KW AC3 32A 3P+1NO Coil 24VAC
EKC1-3210-42 Contactor 15KW AC3 32A 3P+1NO Coil 42VAC
EKC1-3210-48 Contactor 15KW AC3 32A 3P+1NO Coil 48VAC
EKC1-3210-110 Contactor 15KW AC3 32A 3P+1NO Coil 110VAC
EKC1-3210-120 Contactor 15KW AC3 32A 3P+1NO Coil 120VAC
EKC1-3210-220 Contactor 15KW AC3 32A 3P+1NO Coil 220VAC
EKC1-3210-230 Contactor 15KW AC3 32A 3P+1NO Coil 230VAC
EKC1-3210-240 Contactor 15KW AC3 32A 3P+1NO Coil 240VAC
EKC1-3210-380 Contactor 15KW AC3 32A 3P+1NO Coil 380VAC
EKC1-3210-415 Contactor 15KW AC3 32A 3P+1NO Coil 415VAC
EKC1-3201-24 Contactor 15KW AC3 32A 3P+1NC Coil 24VAC
EKC1-3201-42 Contactor 15KW AC3 32A 3P+1NC Coil 42VAC
EKC1-3201-48 Contactor 15KW AC3 32A 3P+1NC Coil 48VAC
EKC1-3201-110 Contactor 15KW AC3 32A 3P+1NC Coil 110VAC
EKC1-3201-120 Contactor 15KW AC3 32A 3P+1NC Coil 120VAC
EKC1-3201-220 Contactor 15KW AC3 32A 3P+1NC Coil 220VAC
EKC1-3201-230 Contactor 15KW AC3 32A 3P+1NC Coil 230VAC
EKC1-3201-240 Contactor 15KW AC3 32A 3P+1NC Coil 240VAC
EKC1-3201-380 Contactor 15KW AC3 32A 3P+1NC Coil 380VAC
EKC1-3201-415 Contactor 15KW AC3 32A 3P+1NC Coil 415VAC
EKC1-3211-24 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 24VAC
EKC1-3211-42 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 42VAC
EKC1-3211-48 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 48VAC
EKC1-3211-110 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 110VAC
EKC1-3211-120 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 120VAC
EKC1-3211-220 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 220VAC
EKC1-3211-230 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 230VAC
EKC1-3211-240 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 240VAC
EKC1-3211-380 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 380VAC
EKC1-3211-415 Contactor 15KW AC3 32A 3P+1NO+1NC Coil 415VAC
EKC1-4011-24 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 24VAC
EKC1-4011-42 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 42VAC
EKC1-4011-48 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 48VAC
EKC1-4011-110 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 110VAC
EKC1-4011-120 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 120VAC
EKC1-4011-220 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 220VAC
EKC1-4011-230 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 230VAC
EKC1-4011-240 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 240VAC
EKC1-4011-380 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 380VAC
EKC1-4011-415 Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 415VAC
EKC1-5011-24 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VAC
EKC1-5011-42 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 42VAC
EKC1-5011-48 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VAC
EKC1-5011-110 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VAC
EKC1-5011-120 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 120VAC
EKC1-5011-220 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VAC
EKC1-5011-230 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 230VAC
EKC1-5011-240 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 240VAC
EKC1-5011-380 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 380VAC
EKC1-5011-415 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 415VAC
EKC1-6511-24 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VAC
EKC1-6511-42 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 42VAC
EKC1-6511-48 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VAC
EKC1-6511-110 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VAC
EKC1-6511-120 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 120VAC
EKC1-6511-220 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VAC
EKC1-6511-230 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 230VAC
EKC1-6511-240 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 240VAC
EKC1-6511-380 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 380VAC
EKC1-6511-415 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 415VAC
EKC1-8011-24 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VAC
EKC1-8011-42 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 42VAC
EKC1-8011-48 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VAC
EKC1-8011-110 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VAC
EKC1-8011-120 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 120VAC
EKC1-8011-220 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VAC
EKC1-8011-230 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 230VAC
EKC1-8011-240 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 240VAC
EKC1-8011-380 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 380VAC
EKC1-8011-415 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 415VAC
EKC1-9511-24 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VAC
EKC1-9511-42 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 42VAC
EKC1-9511-48 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VAC
EKC1-9511-110 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VAC
EKC1-9511-120 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 120VAC
EKC1-9511-220 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VAC
EKC1-9511-230 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 230VAC
EKC1-9511-240 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 240VAC
EKC1-9511-380 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 380VAC
EKC1-9511-415 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 415VAC
EKC1-0904-24 Contactor 4KW AC3 9A 4P 4NO Coil 24VAC
EKC1-0904-42 Contactor 4KW AC3 9A 4P 4NO Coil 42VAC
EKC1-0904-48 Contactor 4KW AC3 9A 4P 4NO Coil 48VAC
EKC1-0904-110 Contactor 4KW AC3 9A 4P 4NO Coil 110VAC
EKC1-0904-120 Contactor 4KW AC3 9A 4P 4NO Coil 120VAC
EKC1-0904-220 Contactor 4KW AC3 9A 4P 4NO Coil 220VAC
EKC1-0904-230 Contactor 4KW AC3 9A 4P 4NO Coil 230VAC
EKC1-0904-240 Contactor 4KW AC3 9A 4P 4NO Coil 240VAC
EKC1-0904-380 Contactor 4KW AC3 9A 4P 4NO Coil 380VAC
EKC1-0904-415 Contactor 4KW AC3 9A 4P 4NO Coil 415VAC
EKC1-0908-24 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 24VAC
EKC1-0908-42 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 42VAC
EKC1-0908-48 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 48VAC
EKC1-0908-110 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 110VAC
EKC1-0908-120 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 120VAC
EKC1-0908-220 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 220VAC
EKC1-0908-230 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 230VAC
EKC1-0908-240 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 240VAC
EKC1-0908-380 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 380VAC
EKC1-0908-415 Contactor 4KW AC3 9A 4P 2NO+2NC Coil 415VAC
EKC1-1204-24 Contactor 5.5KW AC3 12A 4P 4NO Coil 24VAC
EKC1-1204-42 Contactor 5.5KW AC3 12A 4P 4NO Coil 42VAC
EKC1-1204-48 Contactor 5.5KW AC3 12A 4P 4NO Coil 48VAC
EKC1-1204-110 Contactor 5.5KW AC3 12A 4P 4NO Coil 110VAC
EKC1-1204-120 Contactor 5.5KW AC3 12A 4P 4NO Coil 120VAC
EKC1-1204-220 Contactor 5.5KW AC3 12A 4P 4NO Coil 220VAC
EKC1-1204-230 Contactor 5.5KW AC3 12A 4P 4NO Coil 230VAC
EKC1-1204-240 Contactor 5.5KW AC3 12A 4P 4NO Coil 240VAC
EKC1-1204-380 Contactor 5.5KW AC3 12A 4P 4NO Coil 380VAC
EKC1-1204-415 Contactor 5.5KW AC3 12A 4P 4NO Coil 415VAC
EKC1-1208-24 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 24VAC
EKC1-1208-42 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 42VAC
EKC1-1208-48 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 48VAC
EKC1-1208-110 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 110VAC
EKC1-1208-120 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 120VAC
EKC1-1208-220 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 220VAC
EKC1-1208-230 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 230VAC
EKC1-1208-240 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 240VAC
EKC1-1208-380 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 380VAC
EKC1-1208-415 Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 415VAC
EKC1-2504-24 Contactor 11KW AC3 25A 4P 4NO Coil 24VAC
EKC1-2504-42 Contactor 11KW AC3 25A 4P 4NO Coil 42VAC
EKC1-2504-48 Contactor 11KW AC3 25A 4P 4NO Coil 48VAC
EKC1-2504-110 Contactor 11KW AC3 25A 4P 4NO Coil 110VAC
EKC1-2504-120 Contactor 11KW AC3 25A 4P 4NO Coil 120VAC
EKC1-2504-220 Contactor 11KW AC3 25A 4P 4NO Coil 220VAC
EKC1-2504-230 Contactor 11KW AC3 25A 4P 4NO Coil 230VAC
EKC1-2504-240 Contactor 11KW AC3 25A 4P 4NO Coil 240VAC
EKC1-2504-380 Contactor 11KW AC3 25A 4P 4NO Coil 380VAC
EKC1-2504-415 Contactor 11KW AC3 25A 4P 4NO Coil 415VAC
EKC1-2508-24 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 24VAC
EKC1-2508-42 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 42VAC
EKC1-2508-48 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 48VAC
EKC1-2508-110 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 110VAC
EKC1-2508-120 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 120VAC
EKC1-2508-220 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 220VAC
EKC1-2508-230 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 230VAC
EKC1-2508-240 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 240VAC
EKC1-2508-380 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 380VAC
EKC1-2508-415 Contactor 11KW AC3 25A 4P 2NO+2NC Coil 415VAC
EKC1-4004-24 Contactor 18.5KW AC3 40A 4P 4NO Coil 24VAC
EKC1-4004-42 Contactor 18.5KW AC3 40A 4P 4NO Coil 42VAC
EKC1-4004-48 Contactor 18.5KW AC3 40A 4P 4NO Coil 48VAC
EKC1-4004-110 Contactor 18.5KW AC3 40A 4P 4NO Coil 110VAC
EKC1-4004-120 Contactor 18.5KW AC3 40A 4P 4NO Coil 120VAC
EKC1-4004-220 Contactor 18.5KW AC3 40A 4P 4NO Coil 220VAC
EKC1-4004-230 Contactor 18.5KW AC3 40A 4P 4NO Coil 230VAC
EKC1-4004-240 Contactor 18.5KW AC3 40A 4P 4NO Coil 240VAC
EKC1-4004-380 Contactor 18.5KW AC3 40A 4P 4NO Coil 380VAC
EKC1-4004-415 Contactor 18.5KW AC3 40A 4P 4NO Coil 415VAC
EKC1-4008-24 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 24VAC
EKC1-4008-42 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 42VAC
EKC1-4008-48 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 48VAC
EKC1-4008-110 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 110VAC
EKC1-4008-120 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 120VAC
EKC1-4008-220 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 220VAC
EKC1-4008-230 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 230VAC
EKC1-4008-240 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 240VAC
EKC1-4008-380 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 380VAC
EKC1-4008-415 Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 415VAC
EKC1-5004-24 Contactor 22KW AC3 50A 4P 4NO Coil 24VAC
EKC1-5004-42 Contactor 22KW AC3 50A 4P 4NO Coil 42VAC
EKC1-5004-48 Contactor 22KW AC3 50A 4P 4NO Coil 48VAC
EKC1-5004-110 Contactor 22KW AC3 50A 4P 4NO Coil 110VAC
EKC1-5004-120 Contactor 22KW AC3 50A 4P 4NO Coil 120VAC
EKC1-5004-220 Contactor 22KW AC3 50A 4P 4NO Coil 220VAC
EKC1-5004-230 Contactor 22KW AC3 50A 4P 4NO Coil 230VAC
EKC1-5004-240 Contactor 22KW AC3 50A 4P 4NO Coil 240VAC
EKC1-5004-380 Contactor 22KW AC3 50A 4P 4NO Coil 380VAC
EKC1-5004-415 Contactor 22KW AC3 50A 4P 4NO Coil 415VAC
EKC1-5008-24 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 24VAC
EKC1-5008-42 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 42VAC
EKC1-5008-48 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 48VAC
EKC1-5008-110 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 110VAC
EKC1-5008-120 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 120VAC
EKC1-5008-220 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 220VAC
EKC1-5008-230 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 230VAC
EKC1-5008-240 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 240VAC
EKC1-5008-380 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 380VAC
EKC1-5008-415 Contactor 22KW AC3 50A 4P 2NO+2NC Coil 415VAC
EKC1-6504-24 Contactor 30KW AC3 65A 4P 4NO Coil 24VAC
EKC1-6504-42 Contactor 30KW AC3 65A 4P 4NO Coil 42VAC
EKC1-6504-48 Contactor 30KW AC3 65A 4P 4NO Coil 48VAC
EKC1-6504-110 Contactor 30KW AC3 65A 4P 4NO Coil 110VAC
EKC1-6504-120 Contactor 30KW AC3 65A 4P 4NO Coil 120VAC
EKC1-6504-220 Contactor 30KW AC3 65A 4P 4NO Coil 220VAC
EKC1-6504-230 Contactor 30KW AC3 65A 4P 4NO Coil 230VAC
EKC1-6504-240 Contactor 30KW AC3 65A 4P 4NO Coil 240VAC
EKC1-6504-380 Contactor 30KW AC3 65A 4P 4NO Coil 380VAC
EKC1-6504-415 Contactor 30KW AC3 65A 4P 4NO Coil 415VAC
EKC1-6508-24 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 24VAC
EKC1-6508-42 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 42VAC
EKC1-6508-48 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 48VAC
EKC1-6508-110 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 110VAC
EKC1-6508-120 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 120VAC
EKC1-6508-220 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 220VAC
EKC1-6508-230 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 230VAC
EKC1-6508-240 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 240VAC
EKC1-6508-380 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 380VAC
EKC1-6508-415 Contactor 30KW AC3 65A 4P 2NO+2NC Coil 415VAC
EKC1-8004-24 Contactor 37KW AC3 80A 4P 4NO Coil 24VAC
EKC1-8004-42 Contactor 37KW AC3 80A 4P 4NO Coil 42VAC
EKC1-8004-48 Contactor 37KW AC3 80A 4P 4NO Coil 48VAC
EKC1-8004-110 Contactor 37KW AC3 80A 4P 4NO Coil 110VAC
EKC1-8004-120 Contactor 37KW AC3 80A 4P 4NO Coil 120VAC
EKC1-8004-220 Contactor 37KW AC3 80A 4P 4NO Coil 220VAC
EKC1-8004-230 Contactor 37KW AC3 80A 4P 4NO Coil 230VAC
EKC1-8004-240 Contactor 37KW AC3 80A 4P 4NO Coil 240VAC
EKC1-8004-380 Contactor 37KW AC3 80A 4P 4NO Coil 380VAC
EKC1-8004-415 Contactor 37KW AC3 80A 4P 4NO Coil 415VAC
EKC1-8008-24 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 24VAC
EKC1-8008-42 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 42VAC
EKC1-8008-48 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 48VAC
EKC1-8008-110 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 110VAC
EKC1-8008-120 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 120VAC
EKC1-8008-220 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 220VAC
EKC1-8008-230 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 230VAC
EKC1-8008-240 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 240VAC
EKC1-8008-380 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 380VAC
EKC1-8008-415 Contactor 37KW AC3 80A 4P 2NO+2NC Coil 415VAC
EKC1-9504-24 Contactor 45KW AC3 95A 4P 4NO Coil 24VAC
EKC1-9504-42 Contactor 45KW AC3 95A 4P 4NO Coil 42VAC
EKC1-9504-48 Contactor 45KW AC3 95A 4P 4NO Coil 48VAC
EKC1-9504-110 Contactor 45KW AC3 95A 4P 4NO Coil 110VAC
EKC1-9504-120 Contactor 45KW AC3 95A 4P 4NO Coil 120VAC
EKC1-9504-220 Contactor 45KW AC3 95A 4P 4NO Coil 220VAC
EKC1-9504-230 Contactor 45KW AC3 95A 4P 4NO Coil 230VAC
EKC1-9504-240 Contactor 45KW AC3 95A 4P 4NO Coil 240VAC
EKC1-9504-380 Contactor 45KW AC3 95A 4P 4NO Coil 380VAC
EKC1-9504-415 Contactor 45KW AC3 95A 4P 4NO Coil 415VAC
EKC1-9508-24 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 24VAC
EKC1-9508-42 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 42VAC
EKC1-9508-48 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 48VAC
EKC1-9508-110 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 110VAC
EKC1-9508-120 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 120VAC
EKC1-9508-220 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 220VAC
EKC1-9508-230 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 230VAC
EKC1-9508-240 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 240VAC
EKC1-9508-380 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 380VAC
EKC1-9508-415 Contactor 45KW AC3 95A 4P 2NO+2NC Coil 415VAC
DC Coil
EKC1-0910Z-12 Contactor 4KW AC3 9A 3P+1NO Coil 12VDC
EKC1-0910Z-24 Contactor 4KW AC3 9A 3P+1NO Coil 24VDC
EKC1-0910Z-36 Contactor 4KW AC3 9A 3P+1NO Coil 36VDC
EKC1-0910Z-48 Contactor 4KW AC3 9A 3P+1NO Coil 48VDC
EKC1-0910Z-110 Contactor 4KW AC3 9A 3P+1NO Coil 110VDC
EKC1-0910Z-120 Contactor 4KW AC3 9A 3P+1NO Coil 120VDC
EKC1-0910Z-220 Contactor 4KW AC3 9A 3P+1NO Coil 220VDC
EKC1-0901Z-12 Contactor 4KW AC3 9A 3P+1NC Coil 12VDC
EKC1-0901Z-24 Contactor 4KW AC3 9A 3P+1NC Coil 24VDC
EKC1-0901Z-36 Contactor 4KW AC3 9A 3P+1NC Coil 36VDC
EKC1-0901Z-48 Contactor 4KW AC3 9A 3P+1NC Coil 48VDC
EKC1-0901Z-110 Contactor 4KW AC3 9A 3P+1NC Coil 110VDC
EKC1-0901Z-120 Contactor 4KW AC3 9A 3P+1NC Coil 120VDC
EKC1-0901Z-220 Contactor 4KW AC3 9A 3P+1NC Coil 220VDC
EKC1-1210Z-12 Contactor 5.5KA AC3 12A 3P+1NO Coil 12VDC
EKC1-1210Z-24 Contactor 5.5KA AC3 12A 3P+1NO Coil 24VDC
EKC1-1210Z-36 Contactor 5.5KA AC3 12A 3P+1NO Coil 36VDC
EKC1-1210Z-48 Contactor 5.5KA AC3 12A 3P+1NO Coil 48VDC
EKC1-1210Z-110 Contactor 5.5KA AC3 12A 3P+1NO Coil 110VDC
EKC1-1210Z-120 Contactor 5.5KA AC3 12A 3P+1NO Coil 120VDC
EKC1-1210Z-220 Contactor 5.5KA AC3 12A 3P+1NO Coil 220VDC
EKC1-1201Z-12 Contactor 5.5KA AC3 12A 3P+1NC Coil 12VDC
EKC1-1201Z-24 Contactor 5.5KA AC3 12A 3P+1NC Coil 24VDC
EKC1-1201Z-36 Contactor 5.5KA AC3 12A 3P+1NC Coil 36VDC
EKC1-1201Z-48 Contactor 5.5KA AC3 12A 3P+1NC Coil 48VDC
EKC1-1201Z-110 Contactor 5.5KA AC3 12A 3P+1NC Coil 110VDC
EKC1-1201Z-120 Contactor 5.5KA AC3 12A 3P+1NC Coil 120VDC
EKC1-1201Z-220 Contactor 5.5KA AC3 12A 3P+1NC Coil 220VDC
EKC1-1810Z-12 Contactor 7.5KA AC3 18A 3P+1NO Coil 12VDC
EKC1-1810Z-24 Contactor 7.5KA AC3 18A 3P+1NO Coil 24VDC
EKC1-1810Z-36 Contactor 7.5KA AC3 18A 3P+1NO Coil 36VDC
EKC1-1810Z-48 Contactor 7.5KA AC3 18A 3P+1NO Coil 48VDC
EKC1-1810Z-110 Contactor 7.5KA AC3 18A 3P+1NO Coil 110VDC
EKC1-1810Z-120 Contactor 7.5KA AC3 18A 3P+1NO Coil 120VDC
EKC1-1810Z-220 Contactor 7.5KA AC3 18A 3P+1NO Coil 220VDC
EKC1-1801Z-12 Contactor 7.5KA AC3 18A 3P+1NC Coil 12VDC
EKC1-1801Z-24 Contactor 7.5KA AC3 18A 3P+1NC Coil 24VDC
EKC1-1801Z-36 Contactor 7.5KA AC3 18A 3P+1NC Coil 36VDC
EKC1-1801Z-48 Contactor 7.5KA AC3 18A 3P+1NC Coil 48VDC
EKC1-1801Z-110 Contactor 7.5KA AC3 18A 3P+1NC Coil 110VDC
EKC1-1801Z-120 Contactor 7.5KA AC3 18A 3P+1NC Coil 120VDC
EKC1-1801Z-220 Contactor 7.5KW AC3 18A 3P+1NC Coil 220VDC
EKC1-2510Z-12 Contactor 11KA AC3 25A 3P+1NO Coil 12VDC
EKC1-2510Z-24 Contactor 11KA AC3 25A 3P+1NO Coil 24VDC
EKC1-2510Z-36 Contactor 11KA AC3 25A 3P+1NO Coil 36VDC
EKC1-2510Z-48 Contactor 11KA AC3 25A 3P+1NO Coil 48VDC
EKC1-2510Z-110 Contactor 11KA AC3 25A 3P+1NO Coil 110VDC
EKC1-2510Z-120 Contactor 11KA AC3 25A 3P+1NO Coil 120VDC
EKC1-2510Z-220 Contactor 11KA AC3 25A 3P+1NO Coil 220VDC
EKC1-2501Z-12 Contactor 11KA AC3 25A 3P+1NC Coil 12VDC
EKC1-2501Z-24 Contactor 11KA AC3 25A 3P+1NC Coil 24VDC
EKC1-2501Z-36 Contactor 11KA AC3 25A 3P+1NC Coil 36VDC
EKC1-2501Z-48 Contactor 11KA AC3 25A 3P+1NC Coil 48VDC
EKC1-2501Z-110 Contactor 11KA AC3 25A 3P+1NC Coil 110VDC
EKC1-2501Z-120 Contactor 11KA AC3 25A 3P+1NC Coil 120VDC
EKC1-2501Z-220 Contactor 11KA AC3 25A 3P+1NC Coil 220VDC
EKC1-3210Z-12 Contactor 15KA AC3 32A 3P+1NO Coil 12VDC
EKC1-3210Z-24 Contactor 15KA AC3 32A 3P+1NO Coil 24VDC
EKC1-3210Z-36 Contactor 15KA AC3 32A 3P+1NO Coil 36VDC
EKC1-3210Z-48 Contactor 15KA AC3 32A 3P+1NO Coil 48VDC
EKC1-3210Z-110 Contactor 15KA AC3 32A 3P+1NO Coil 110VDC
EKC1-3210Z-120 Contactor 15KA AC3 32A 3P+1NO Coil 120VDC
EKC1-3210Z-220 Contactor 15KA AC3 32A 3P+1NO Coil 220VDC
EKC1-3201Z-12 Contactor 15KA AC3 32A 3P+1NC Coil 12VDC
EKC1-3201Z-24 Contactor 15KA AC3 32A 3P+1NC Coil 24VDC
EKC1-3201Z-36 Contactor 15KA AC3 32A 3P+1NC Coil 36VDC
EKC1-3201Z-48 Contactor 15KA AC3 32A 3P+1NC Coil 48VDC
EKC1-3201Z-110 Contactor 15KA AC3 32A 3P+1NC Coil 110VDC
EKC1-3201Z-120 Contactor 15KA AC3 32A 3P+1NC Coil 120VDC
EKC1-3201Z-220 Contactor 15KA AC3 32A 3P+1NC Coil 220VDC
EKC1-4011Z-12 Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 12VDC
EKC1-4011Z-24 Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 24VDC
EKC1-4011Z-36 Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 36VDC
EKC1-4011Z-48 Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 48VDC
EKC1-4011Z-110 Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 110VDC
EKC1-4011Z-120 Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 120VDC
EKC1-4011Z-220 Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 220VDC
EKC1-5011Z-12 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 12VDC
EKC1-5011Z-24 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VDC
EKC1-5011Z-36 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 36VDC
EKC1-5011Z-48 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VDC
EKC1-5011Z-110 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VDC
EKC1-5011Z-120 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 120VDC
EKC1-5011Z-220 Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VDC
EKC1-6511Z-12 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 12VDC
EKC1-6511Z-24 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VDC
EKC1-6511Z-36 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 36VDC
EKC1-6511Z-48 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VDC
EKC1-6511Z-110 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VDC
EKC1-6511Z-120 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 120VDC
EKC1-6511Z-220 Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VDC
EKC1-8011Z-12 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 12VDC
EKC1-8011Z-24 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VDC
EKC1-8011Z-36 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 36VDC
EKC1-8011Z-48 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VDC
EKC1-8011Z-110 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VDC
EKC1-8011Z-120 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 120VDC
EKC1-8011Z-220 Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VDC
EKC1-9511Z-12 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 12VDC
EKC1-9511Z-24 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VDC
EKC1-9511Z-36 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 36VDC
EKC1-9511Z-48 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VDC
EKC1-9511Z-110 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VDC
EKC1-9511Z-120 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 120VDC
EKC1-9511Z-220 Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VDC

Télécharger les fichiers

Document actuellement disponible en anglais uniquement.

Présentation du produit

Description

Les contacteurs CA sont utilisés pour connecter/déconnecter la ligne et pour contrôler fréquemment les moteurs et autres équipements. Il contrôle le courant élevé avec un courant faible et joue un certain rôle dans la protection contre les surcharges lors du fonctionnement avec le relais thermique.

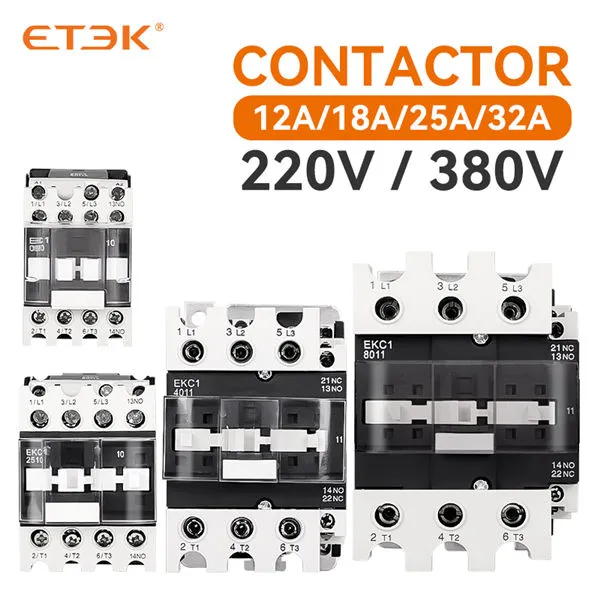

Contacteur EKC1-ac-0910

Caractéristiques du contacteur ekc1-ac

Différents types de contacteurs AC

Structure du contacteur ekc1-ac-introduction

accessoires-contacteur-ac

Application circuits de fermeture et de coupure à distance
protéger le circuit contre les surcharges lors de l'assemblage avec un relais de surcharge thermique
démarrage fréquent et contrôle du contacteur AC
Valeur électrique CA 50/60 Hz, 690 V, jusqu'à 95 A
Catégorie d'utilisation AC-3, AC-4
Altitude ≤2000m
Température ambiante -5℃~+40℃
Catégorie de montage III
Conditions de montage l'inclinaison entre le plan de montage et le plan vertical ne doit pas dépasser ±5°
Standard CEI/EN 60947-4-1. CEI/EN 60947-5-1.

Fonctionnement de la bobine CA
Volts (VCA) 24 36 42 48 110 127 220 230 240 380 415 440 480 500 600
Code 50 Hz B5 C5 D5 E5 F5 G5 M5 P5 U5 Q5 N5 R5 - S5 Y5
60 Hz B6 - D6 E6 F6 G6 M6 0 U6 Q6 0 R6 T6 - -
50/60 Hz B7 - D7 E7 F7 - M7 - Q7 R7 - - -
Fonctionnement de la bobine CC
Volts (VCC) 12 24 36 48 110 220
Code JD BD CD ED FD MARYLAND
  Désignation du type
CE C 1 09 11 Z
Code de l'entreprise
 Contacteur
Séquence de conception N°
Spécification de base, exprimée avec le courant nominal de fonctionnement (380V/400V, AC3)
Nombre de contacts
10 : 3 contacts principaux N/O + 1 contact auxiliaire N/O (9 A, 12 A, 18 A, 25 A, 32 A)
01 : 3 contacts principaux N/O + 1 contact auxiliaire N/C (9 A, 12 A, 18 A, 25 A, 32 A)
11 : 3 contacts principaux N/O + 1 contact auxiliaire N/O et 1 contact auxiliaire O/C (9A, 12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A)
04 : 4 contacts principaux N/O (9 A, 12 A, 25 A, 40 A, 50 A, 65 A, 80 A, 95 A)
08 : 2 contacts principaux N/O et 2 contacts principaux N/C (9A, 12A, 25A, 40A, 50A, 65A, 80A, 95A)
Z : Fonctionnement en courant continu Vide : Fonctionnement en courant alternatif

Paramètres techniques

Télécharger les fichiers

Produits recommandés

EKC2W-Wide-Range-Contactor

Contacteur à large plage de tension EKC2W avec bobine universelle CA/CC

Renseigner
EKC2S-AC-Contactor

Contacteur magnétique CA économique EKC2S avec une plage de 9 à 95 A

Renseigner
EKC1 Mini Contactor

Mini contacteur magnétique AC EKC1

Renseigner
EKCC Capacitor Switching Contactor

Contacteurs ETEK EKCC pour commutation de condensateur, contacteur de service de condensateur

Renseigner

Produits recommandés

EKC2W-Wide-Range-Contactor

Contacteur à large plage de tension EKC2W avec bobine universelle CA/CC

Renseigner
EKC2S-AC-Contactor

Contacteur magnétique CA économique EKC2S avec une plage de 9 à 95 A

Renseigner
EKC1 Mini Contactor

Mini contacteur magnétique AC EKC1

Renseigner
EKCC Capacitor Switching Contactor

Contacteurs ETEK EKCC pour commutation de condensateur, contacteur de service de condensateur

Renseigner
Envoyer une demande

Entrer en contact

Captcha Code
La demande est en cours de soumission, veuillez patienter...
×
Nous respectons votre vie privée
Nous utilisons des cookies pour vous offrir une meilleure expérience en ligne, analyser et mesurer l'utilisation du site Web et aider dans nos efforts de marketing.
Accepter tout
