Disjoncteur à boîtier moulé MCCB de type fixe thermomagnétique EKM8

Disjoncteur à boîtier moulé thermomagnétique EKM8, disjoncteurs à boîtier moulé - La température moyenne ambiante doit être comprise entre -5 ℃ et + 40 ℃ (+ 45 ℃ pour les produits marins); Altitude jusqu'à 2000m

Renseignez-vous MAINTENANT PDF

Disjoncteur à boîtier moulé MCCB de type fixe thermomagnétique EKM8

Renseignez-vous MAINTENANT PDF

Profil du produit

Thermo magnetic Moulded Case Circuit Breaker

Les disjoncteurs magnéto-thermiques sont des interrupteurs électriques à commande automatique qui protègent contre les surintensités dans les circuits. Ces disjoncteurs ont un mode de fonctionnement simple ; ils reposent sur deux mécanismes de commutation (un électroaimant et un bilame) pour assurer la protection contre les surintensités dans les circuits.

L'électroaimant est sensible aux fortes surtensions de courant électrique et réagit en coupant le flux d'électricité vers le composant. En revanche, le bilame se dilate lorsqu'il est exposé à des courants électriques excessifs. Cela fait plier la bande vers une barre de déclenchement qui éteint le circuit. Lorsque les niveaux de courant reviennent à la normale, la bande refroidit et se réinitialise, permettant au fonctionnement normal de se poursuivre.

Les disjoncteurs à bilame offrent une protection temporisée, tandis que ceux à électroaimants offrent une protection instantanée. Parce qu'un disjoncteur magnéto-thermique combine ces deux technologies, il est capable de fournir une protection instantanée et temporisée en fonction de l'application particulière. Par exemple, la protection instantanée convient pour interrompre des courants extrêmement élevés qui pourraient devenir mortels, alors que la protection temporisée est nécessaire dans les équipements électriques qui consomment temporairement des courants supérieurs à leurs valeurs nominales.

Conditions ambiantes et d'installation

● Altitude jusqu'à 2000m ;
● La température moyenne ambiante doit être comprise entre -5℃ et +40℃ (+45℃ pour les produits marins) ;
● Il peut résister à l'effet de l'air humide ;
● Il peut résister à l'effet des moisissures ;
● Il peut résister à l'effet du rayonnement nucléaire ;
● L'inclinaison maximale est de 22,5℃.
● Il peut toujours fonctionner de manière fiable lorsque le navire est soumis à des vibrations normales ;
● Il peut toujours fonctionner de manière fiable si le produit est soumis au tremblement de terre (4g).
● Endroits où le milieu environnant est exempt de danger d'explosion et loin de gaz ou de poussières conductrices qui éroderaient le métal ou détruiraient l'isolation ;
● Tenir à l'écart de la pluie ou de la neige.

Composants du disjoncteur

Components of Circuit Breaker



données techniques

EKM8 125 C P 4
Code produit Taille du cadre Classe actuelle Code de la tension de la source du circuit de commande Numéro de pôle
Boîtier moulé
disjoncteur
125 160 250 400 630 800
Noter:
125 est un type amélioré de cadre 63
160 est un type amélioré de cadre 100
250 est un type amélioré de cadre 225
630 est un type amélioré de cadre 400
  C S H P : fonctionnement électrique
Z : poignée rotative
W : fonctionnement direct
3 : 3 pôles
4 : 4 pôles
125 15/10 18/15 28/18
160 20/15 25/18 35/25
250 25/15 25/18 35/25
400   35/25 50/35
630   35/25 50/35
800   50/35 65/50



300 125A 2 UN
Type de déclencheur et accessoire interne Courant nominal (A) Application Code du produit tétrapolaire
Le premier chiffre représente le type de version
2 : A une libération instantanée uniquement
3 : Version complexe Remarque :
Deux chiffres plus tard sont le code des accessoires (voir tableau des accessoires)
125 10, 16, 20, 25, 32, 40, 50,63, 80, 100, 125 1 : répartition de puissance
2 : protection moteur
A: le pôle N sans protection ne peut pas se fermer ou s'ouvrir
B: le pôle N sans protection peut se fermer et s'ouvrir
C: le pôle N avec protection peut se fermer et s'ouvrir
D : le pôle N avec protection ne peut pas se fermer ou s'ouvrir
160 63, 80, 100, 125, 140, 160
250 100, 125, 140, 160,180, 200, 225, 250
400 250, 300, 315, 350, 400
630 400, 500, 630
800 500, 630, 700, 800



Q1 D1 Q 2
Tension accessoire Tension de fonctionnement électrique Méthodes d'installation Installer ou non le tableau de câblage
Déclencheur à minimum de tension Déclencheur shunt Alarme auxiliaire Fonctionnement électrique DC1 Fonctionnement électrique DC3 Q : Panneau avant
H : panneau arrière
C : Type de plug-in
1 : Non
2 : Oui
Q1 : AC220V F1 : AC220V J1 : 125 V CA D1 : AC220V D5 : AC230V
Q2 : AC240V F2 : AC380V J2 : 250 V CA D2 : AC230V D6 : 110 V CA
Q3 : AC380V F3 : 110 V CC J3 : DC125V D3 : AC380V D7 : DC220
Q4 : AC415V F4 : DC24V J4 : DC24V D4 : AC400V D8 : DC110
        D9 : AC110-240V
        D10 : DC100-220V
  Noter:
Tensions adaptables pour deux électriques
opérations. Veuillez vous référer au
Introduction de l'accessoire externe.

Courant de trame (A) 125 160
Modèle EKM8-125C EKM8-125S EKM8-125H EKM8-160C EKM8-160S EKM8-160H
Numéro de pôle 1, 2, 3, 4 2, 3, 4

Courant nominal (A) 10, 16, 20, 32, 25, 40, 50, 63, 80, 100, 125 63, 80, 100, 125, 140, 160
Tension nominale (V) AC400V AC400V
Tension d'isolation nominale (V) AC1000V AC1000V
Pouvoir de coupure en court-circuit (KA)Icu/Ics AC400V 15/10 18/15 25/18 20/15 25/18 35/25
Numéro de cycle de fonctionnement Durée de vie électrique 6000 3000
Durée de vie mécanique 9000 7000

Dimensions du contour (mm)
abc-ca

1P 25-130-68-90 - - -
2P 50-130-68-90 60-155-68-90 60-155-88-115
3P 75-130-68-90 90-155-68-90 90-155-88-115
4P 100-130-68-90 120-155-68-90 120-155-88-115
poids (kg) 1P 0,32 - - -
2P 0,5 0,55 1 1.1
3P 0,55 0,65 1.1 1.2
4P 0,65 0,8 1.4 1.5
Dispositif de commande électrique (MD)
Poignée de commande de conduite externe
Libération automatique Type électromagnétique thermique



Courant de trame (A) 250 400
Modèle EKM8-250C EKM8-250S EKM8-250H EKM8-400S EKM8-400H
Numéro de pôle 3, 4 3, 4

Courant nominal (A) 100, 125, 140, 160, 180, 200, 225, 250 250 315 350 400
Tension nominale (V) AC400V AC400V
Tension d'isolation nominale (V) AC1000V AC1000V
Pouvoir de coupure en court-circuit (KA)Icu/Ics AC400V 25/15 25/18 35/25 35/25 50/35
Numéro de cycle de fonctionnement Durée de vie électrique 3000 2000
Durée de vie mécanique 7000 4000

Dimensions du contour (mm)
abc-ca


3P 105-165-68-92 105-165-88-115 140-257-103-155
4P 140-165-68-92 140-165-88-115 184-257-103-155

poids (kg)
2P 1.5 1.7 5.5
3P 1.9 2.1 sept

Dispositif de commande électrique (MD)
Poignée de commande de conduite externe
Libération automatique Type électromagnétique thermique



Courant de trame (A) 630 800

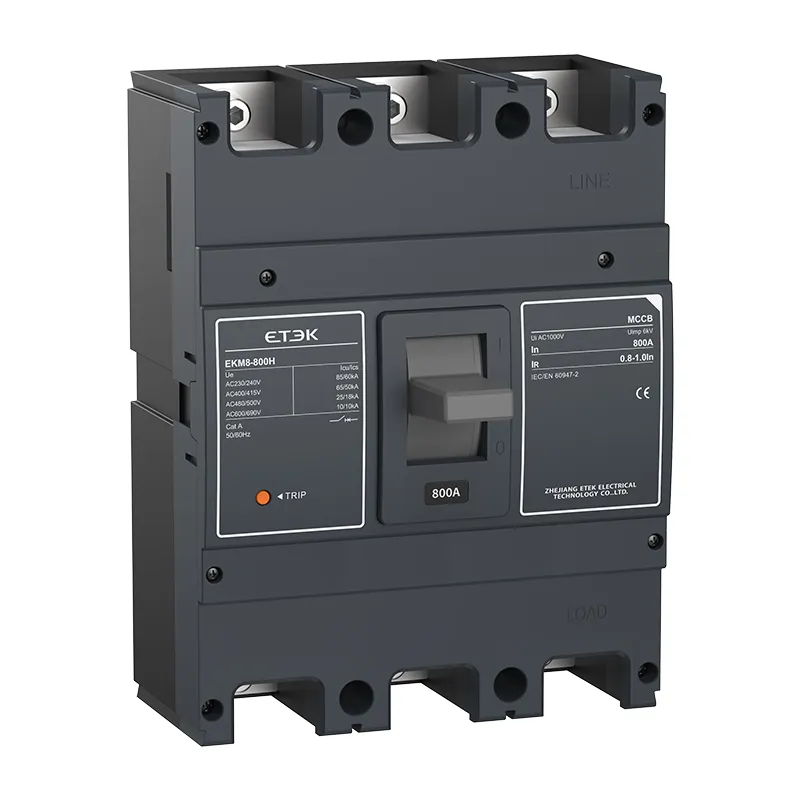

Modèle EKM8-630S EKM8-630H EKM8-800S EKM8-800H
Numéro de pôle 3, 4 3, 4

Courant nominal (A) 250, 315, 350, 400, 500, 630 500, 630, 700, 800,1000,1250
Tension nominale (V) AC400V AC400V
Tension d'isolation nominale (V) AC1000V AC1000V
Pouvoir de coupure en court-circuit (KA)Icu/Ics AC400V 35/25 50/35 50/35 65/65
Numéro de cycle de fonctionnement
Durée de vie électrique
2000 1500
Durée de vie mécanique 4000 4000
Dimensions du contour (mm)
abc-ca

3P 140-257-103-155 210-275-103-155
4P 184-257-103-155 280-275-103-155

poids (kg)
2P 5.7 9.5
3P 7.5 12.5

Dispositif de commande électrique (MD)
Poignée de commande de conduite externe
Libération automatique Type électromagnétique thermique

Dimensions

Formulaire de sélection de produits

Numéro de référence. spécification
EKM8-125S-1-0010 Type thermomagnétique MCCB 1P 10A ICU/ICS:18/15KA
EKM8-125S-1-0016 Type thermomagnétique MCCB 1P 16A ICU/ICS:18/15KA
EKM8-125S-1-0020 Type thermomagnétique MCCB 1P 20A ICU/ICS:18/15KA
EKM8-125S-1-0025 Type thermomagnétique MCCB 1P 25A ICU/ICS:18/15KA
EKM8-125S-1-0032 Type thermomagnétique MCCB 1P 32A ICU/ICS:18/15KA
EKM8-125S-1-0040 Type thermomagnétique MCCB 1P 40A ICU/ICS:18/15KA
EKM8-125S-1-0050 Type thermomagnétique MCCB 1P 50A ICU/ICS:18/15KA
EKM8-125S-1-0063 Type thermomagnétique MCCB 1P 63A ICU/ICS:18/15KA
EKM8-125S-1-0080 Type thermomagnétique MCCB 1P 80A ICU/ICS:18/15KA
EKM8-125S-1-0100 Type thermomagnétique MCCB 1P 100A ICU/ICS:18/15KA
EKM8-125S-1-0125 Type thermomagnétique MCCB 1P 125A ICU/ICS:18/15KA
EKM8-125S-2-0010 Type thermomagnétique MCCB 2P 10A ICU/ICS:18/15KA
EKM8-125S-2-0016 Type thermomagnétique MCCB 2P 16A ICU/ICS:18/15KA
EKM8-125S-2-0020 Type thermomagnétique MCCB 2P 20A ICU/ICS:18/15KA
EKM8-125S-2-0025 Type thermomagnétique MCCB 2P 25A ICU/ICS:18/15KA
EKM8-125S-2-0032 Type thermomagnétique MCCB 2P 32A ICU/ICS:18/15KA
EKM8-125S-2-0040 Type thermomagnétique MCCB 2P 40A ICU/ICS:18/15KA
EKM8-125S-2-0050 Type thermomagnétique MCCB 2P 50A ICU/ICS:18/15KA
EKM8-125S-2-0063 Type thermomagnétique MCCB 2P 63A ICU/ICS:18/15KA
EKM8-125S-2-0080 Type thermomagnétique MCCB 2P 80A ICU/ICS:18/15KA
EKM8-125S-2-0100 Type thermomagnétique MCCB 2P 100A ICU/ICS:18/15KA
EKM8-125S-2-0125 Type thermomagnétique MCCB 2P 125A ICU/ICS:18/15KA
EKM8-125S-3-0010 Type thermomagnétique MCCB 3P 10A ICU/ICS:18/15KA
EKM8-125S-3-0016 Type thermomagnétique MCCB 3P 16A ICU/ICS:18/15KA
EKM8-125S-3-0020 Type thermomagnétique MCCB 3P 20A ICU/ICS:18/15KA
EKM8-125S-3-0025 Type thermomagnétique MCCB 3P 25A ICU/ICS:18/15KA
EKM8-125S-3-0032 Type thermomagnétique MCCB 3P 32A ICU/ICS:18/15KA
EKM8-125S-3-0040 Type thermomagnétique MCCB 3P 40A ICU/ICS:18/15KA
EKM8-125S-3-0050 Type thermomagnétique MCCB 3P 50A ICU/ICS:18/15KA
EKM8-125S-3-0063 Type thermomagnétique MCCB 3P 63A ICU/ICS:18/15KA
EKM8-125S-3-0080 Type thermomagnétique MCCB 3P 80A ICU/ICS:18/15KA
EKM8-125S-3-0100 Type thermomagnétique MCCB 3P 100A ICU/ICS:18/15KA
EKM8-125S-3-0125 Type thermomagnétique MCCB 3P 125A ICU/ICS:18/15KA
EKM8-125S-4-0010 Type thermomagnétique MCCB 4P 10A ICU/ICS:18/15KA
EKM8-125S-4-0016 Type thermomagnétique MCCB 4P 16A ICU/ICS:18/15KA
EKM8-125S-4-0020 Type thermomagnétique MCCB 4P 20A ICU/ICS:18/15KA
EKM8-125S-4-0025 Type thermomagnétique MCCB 4P 25A ICU/ICS:18/15KA
EKM8-125S-4-0032 Type thermomagnétique MCCB 4P 32A ICU/ICS:18/15KA
EKM8-125S-4-0040 Type thermomagnétique MCCB 4P 40A ICU/ICS:18/15KA
EKM8-125S-4-0050 Type thermomagnétique MCCB 4P 50A ICU/ICS:18/15KA
EKM8-125S-4-0063 Type thermomagnétique MCCB 4P 63A ICU/ICS:18/15KA
EKM8-125S-4-0080 Type thermomagnétique MCCB 4P 80A ICU/ICS:18/15KA
EKM8-125S-4-0100 Type thermomagnétique MCCB 4P 100A ICU/ICS:18/15KA
EKM8-125S-4-0125 Type thermomagnétique MCCB 4P 125A ICU/ICS:18/15KA
EKM8-125H-3-0010 Type thermomagnétique MCCB 3P 10A ICU/ICS:25/18KA
EKM8-125H-3-0016 Type thermomagnétique MCCB 3P 16A ICU/ICS:25/18KA
EKM8-125H-3-0020 Type thermomagnétique MCCB 3P 20A ICU/ICS:25/18KA
EKM8-125H-3-0025 Type thermomagnétique MCCB 3P 25A ICU/ICS:25/18KA
EKM8-125H-3-0032 Type thermomagnétique MCCB 3P 32A ICU/ICS:25/18KA
EKM8-125H-3-0040 Type thermomagnétique MCCB 3P 40A ICU/ICS:25/18KA
EKM8-125H-3-0050 Type thermomagnétique MCCB 3P 50A ICU/ICS:25/18KA
EKM8-125H-3-0063 Type thermomagnétique MCCB 3P 63A ICU/ICS:25/18KA
EKM8-125H-3-0080 Type thermomagnétique MCCB 3P 80A ICU/ICS:25/18KA
EKM8-125H-3-0100 Type thermomagnétique MCCB 3P 100A ICU/ICS:25/18KA
EKM8-125H-3-0125 Type thermomagnétique MCCB 3P 125A ICU/ICS:25/18KA
EKM8-125H-4-0010 Type thermomagnétique MCCB 4P 10A ICU/ICS:25/18KA
EKM8-125H-4-0016 Type thermomagnétique MCCB 4P 16A ICU/ICS:25/18KA
EKM8-125H-4-0020 Type thermomagnétique MCCB 4P 20A ICU/ICS:25/18KA
EKM8-125H-4-0025 Type thermomagnétique MCCB 4P 25A ICU/ICS:25/18KA
EKM8-125H-4-0032 Type thermomagnétique MCCB 4P 32A ICU/ICS:25/18KA
EKM8-125H-4-0040 Type thermomagnétique MCCB 4P 40A ICU/ICS:25/18KA
EKM8-125H-4-0050 Type thermomagnétique MCCB 4P 50A ICU/ICS:25/18KA
EKM8-125H-4-0063 Type thermomagnétique MCCB 4P 63A ICU/ICS:25/18KA
EKM8-125H-4-0080 Type thermomagnétique MCCB 4P 80A ICU/ICS:25/18KA
EKM8-125H-4-0100 Type thermomagnétique MCCB 4P 100A ICU/ICS:25/18KA
EKM8-125H-4-0125 Type thermomagnétique MCCB 4P 125A ICU/ICS:25/18KA
EKM8-160S-2-0063 Type thermomagnétique MCCB 2P 63A ICU/ICS:25/18KA
EKM8-160S-2-0080 Type thermomagnétique MCCB 2P 80A ICU/ICS:25/18KA
EKM8-160S-2-0100 Type thermomagnétique MCCB 2P 100A ICU/ICS:25/18KA
EKM8-160S-2-0125 Type thermomagnétique MCCB 2P 125A ICU/ICS:25/18KA
EKM8-160S-2-0140 Type thermomagnétique MCCB 2P 140A ICU/ICS:25/18KA
EKM8-160S-2-0160 Type thermomagnétique MCCB 2P 160A ICU/ICS:25/18KA
EKM8-160S-3-0063 Type thermomagnétique MCCB 3P 63A ICU/ICS:25/18KA
EKM8-160S-3-0080 Type thermomagnétique MCCB 3P 80A ICU/ICS:25/18KA
EKM8-160S-3-0100 Type thermomagnétique MCCB 3P 100A ICU/ICS:25/18KA
EKM8-160S-3-0125 Type thermomagnétique MCCB 3P 125A ICU/ICS:25/18KA
EKM8-160S-3-0140 Type thermomagnétique MCCB 3P 140A ICU/ICS:25/18KA
EKM8-160S-3-0160 Type thermomagnétique MCCB 3P 160A ICU/ICS:25/18KA
EKM8-160S-4-0063 Type thermomagnétique MCCB 4P 63A ICU/ICS:25/18KA
EKM8-160S-4-0080 Type thermomagnétique MCCB 4P 80A ICU/ICS:25/18KA
EKM8-160S-4-0100 Type thermomagnétique MCCB 4P 100A ICU/ICS:25/18KA
EKM8-160S-4-0125 Type thermomagnétique MCCB 4P 125A ICU/ICS:25/18KA
EKM8-160S-4-0140 Type thermomagnétique MCCB 4P 140A ICU/ICS:25/18KA
EKM8-160S-4-0160 Type thermomagnétique MCCB 4P 160A ICU/ICS:25/18KA
EKM8-160H-3-0063 Type thermomagnétique MCCB 3P 63A ICU/ICS:35/25KA
EKM8-160H-3-0080 Type thermomagnétique MCCB 3P 80A ICU/ICS:35/25KA
EKM8-160H-3-0100 Type thermomagnétique MCCB 3P 100A ICU/ICS:35/25KA
EKM8-160H-3-0125 Type thermomagnétique MCCB 3P 125A ICU/ICS:35/25KA
EKM8-160H-3-0140 Type thermomagnétique MCCB 3P 140A ICU/ICS:35/25KA
EKM8-160H-3-0160 Type thermomagnétique MCCB 3P 160A ICU/ICS:35/25KA
EKM8-160H-4-0063 Type thermomagnétique MCCB 4P 63A ICU/ICS:35/25KA
EKM8-160H-4-0080 Type thermomagnétique MCCB 4P 80A ICU/ICS:35/25KA
EKM8-160H-4-0100 Type thermomagnétique MCCB 4P 100A ICU/ICS:35/25KA
EKM8-160H-4-0125 Type thermomagnétique MCCB 4P 125A ICU/ICS:35/25KA
EKM8-160H-4-0140 Type thermomagnétique MCCB 4P 140A ICU/ICS:35/25KA
EKM8-160H-4-0160 Type thermomagnétique MCCB 4P 160A ICU/ICS:35/25KA
EKM8-250S-3-0100 Type thermomagnétique MCCB 3P 100A ICU/ICS:25/18KA
EKM8-250S-3-0125 Type thermomagnétique MCCB 3P 125A ICU/ICS:25/18KA
EKM8-250S-3-0140 Type thermomagnétique MCCB 3P 140A ICU/ICS:25/18KA
EKM8-250S-3-0160 Type thermomagnétique MCCB 3P 160A ICU/ICS:25/18KA
EKM8-250S-3-0180 Type thermomagnétique MCCB 3P 180A ICU/ICS:25/18KA
EKM8-250S-3-0200 Type thermomagnétique MCCB 3P 200A ICU/ICS:25/18KA
EKM8-250S-3-0225 Type thermomagnétique MCCB 3P 225A ICU/ICS:25/18KA
EKM8-250S-3-0250 Type thermomagnétique MCCB 3P 250A ICU/ICS:25/18KA
EKM8-250S-4-0100 Type thermomagnétique MCCB 4P 100A ICU/ICS:25/18KA
EKM8-250S-4-0125 Type thermomagnétique MCCB 4P 125A ICU/ICS:25/18KA
EKM8-250S-4-0140 Type thermomagnétique MCCB 4P 140A ICU/ICS:25/18KA
EKM8-250S-4-0160 Type thermomagnétique MCCB 4P 160A ICU/ICS:25/18KA
EKM8-250S-4-0180 Type thermomagnétique MCCB 4P 180A ICU/ICS:25/18KA
EKM8-250S-4-0200 Type thermomagnétique MCCB 4P 200A ICU/ICS:25/18KA
EKM8-250S-4-0225 Type thermomagnétique MCCB 4P 225A ICU/ICS:25/18KA
EKM8-250S-4-0250 Type thermomagnétique MCCB 4P 250A ICU/ICS:25/18KA
EKM8-250H-3-0100 Type thermomagnétique MCCB 3P 100A ICU/ICS:35/25KA
EKM8-250H-3-0125 Type thermomagnétique MCCB 3P 125A ICU/ICS:35/25KA
EKM8-250H-3-0140 Type thermomagnétique MCCB 3P 140A ICU/ICS:35/25KA
EKM8-250H-3-0160 Type thermomagnétique MCCB 3P 160A ICU/ICS:35/25KA
EKM8-250H-3-0180 Type thermomagnétique MCCB 3P 180A ICU/ICS:35/25KA
EKM8-250H-3-0200 Type thermomagnétique MCCB 3P 200A ICU/ICS:35/25KA
EKM8-250H-3-0225 Type thermomagnétique MCCB 3P 225A ICU/ICS:35/25KA
EKM8-250H-3-0250 Type thermomagnétique MCCB 3P 250A ICU/ICS:35/25KA
EKM8-250H-4-0100 Type thermomagnétique MCCB 4P 100A ICU/ICS:35/25KA
EKM8-250H-4-0125 Type thermomagnétique MCCB 4P 125A ICU/ICS:35/25KA
EKM8-250H-4-0140 Type thermomagnétique MCCB 4P 140A ICU/ICS:35/25KA
EKM8-250H-4-0160 Type thermomagnétique MCCB 4P 160A ICU/ICS:35/25KA
EKM8-250H-4-0180 Type thermomagnétique MCCB 4P 180A ICU/ICS:35/25KA
EKM8-250H-4-0200 Type thermomagnétique MCCB 4P 200A ICU/ICS:35/25KA
EKM8-250H-4-0225 Type thermomagnétique MCCB 4P 225A ICU/ICS:35/25KA
EKM8-250H-4-0250 Type thermomagnétique MCCB 4P 250A ICU/ICS:35/25KA
EKM8-400H-3-0250 Type thermomagnétique MCCB 3P 250A ICU/ICS:50/35KA
EKM8-400H-3-0315 Type thermomagnétique MCCB 3P 315A ICU/ICS:50/35KA
EKM8-400H-3-0350 Type thermomagnétique MCCB 3P 350A ICU/ICS:50/35KA
EKM8-400H-3-0400 Type thermomagnétique MCCB 3P 400A ICU/ICS:50/35KA
EKM8-400H-4-0250 Type thermomagnétique MCCB 4P 250A ICU/ICS:50/35KA
EKM8-400H-4-0315 Type thermomagnétique MCCB 4P 315A ICU/ICS:50/35KA
EKM8-400H-4-0350 Type thermomagnétique MCCB 4P 350A ICU/ICS:50/35KA
EKM8-400H-4-0400 Type thermomagnétique MCCB 4P 400A ICU/ICS:50/35KA
EKM8-630H-3-0250 Type thermomagnétique MCCB 3P 250A ICU/ICS:50/35KA
EKM8-630H-3-0315 Type thermomagnétique MCCB 3P 315A ICU/ICS:50/35KA
EKM8-630H-3-0350 Type thermomagnétique MCCB 3P 350A ICU/ICS:50/35KA
EKM8-630H-3-0400 Type thermomagnétique MCCB 3P 400A ICU/ICS:50/35KA
EKM8-630H-3-0500 Type thermomagnétique MCCB 3P 500A ICU/ICS:50/35KA
EKM8-630H-3-0630 Type thermomagnétique MCCB 3P 630A ICU/ICS:50/35KA
EKM8-630H-4-0250 Type thermomagnétique MCCB 4P 250A ICU/ICS:50/35KA
EKM8-630H-4-0315 Type thermomagnétique MCCB 4P 315A ICU/ICS:50/35KA
EKM8-630H-4-0350 Type thermomagnétique MCCB 4P 350A ICU/ICS:50/35KA
EKM8-630H-4-0400 Type thermomagnétique MCCB 4P 400A ICU/ICS:50/35KA
EKM8-630H-4-0500 Type thermomagnétique MCCB 4P 500A ICU/ICS:50/35KA
EKM8-630H-4-0630 Type thermomagnétique MCCB 4P 630A ICU/ICS:50/35KA
EKM8-800H-3-0500 Type thermomagnétique MCCB 3P 500A ICU/ICS:65/50KA
EKM8-800H-3-0630 Type thermomagnétique MCCB 3P 630A ICU/ICS:65/50KA
EKM8-800H-3-0700 Type thermomagnétique MCCB 3P 700A ICU/ICS:65/50KA
EKM8-800H-3-0800 Type thermomagnétique MCCB 3P 800A ICU/ICS:65/50KA
EKM8-800H-4-0500 Type thermomagnétique MCCB 4P 500A ICU/ICS:65/50KA
EKM8-800H-4-0630 Type thermomagnétique MCCB 4P 630A ICU/ICS:65/50KA
EKM8-800H-4-0700 Type thermomagnétique MCCB 4P 700A ICU/ICS:65/50KA
EKM8-800H-4-0800 Type thermomagnétique MCCB 4P 800A ICU/ICS:65/50KA
EKM8-1250H-3-0800 Type thermomagnétique MCCB 3P 800A ICU/ICS:65/50KA
EKM8-1250H-3-1000 Type thermomagnétique MCCB 3P 1000A ICU/ICS:65/50KA
EKM8-1250H-3-1250 Type thermomagnétique MCCB 3P 1250A ICU/ICS:65/50KA
EKM8-1250H-4-0800 Type thermomagnétique MCCB 4P 800A ICU/ICS:65/50KA
EKM8-1250H-4-1000 Type thermomagnétique MCCB 4P 1000A ICU/ICS:65/50KA
EKM8-1250H-4-1250 Type thermomagnétique MCCB 4P 1250A ICU/ICS:65/50KA

Profil du produit

Thermo magnetic Moulded Case Circuit Breaker

Les disjoncteurs magnéto-thermiques sont des interrupteurs électriques à commande automatique qui protègent contre les surintensités dans les circuits. Ces disjoncteurs ont un mode de fonctionnement simple ; ils reposent sur deux mécanismes de commutation (un électroaimant et un bilame) pour assurer la protection contre les surintensités dans les circuits.

L'électroaimant est sensible aux fortes surtensions de courant électrique et réagit en coupant le flux d'électricité vers le composant. En revanche, le bilame se dilate lorsqu'il est exposé à des courants électriques excessifs. Cela fait plier la bande vers une barre de déclenchement qui éteint le circuit. Lorsque les niveaux de courant reviennent à la normale, la bande refroidit et se réinitialise, permettant au fonctionnement normal de se poursuivre.

Les disjoncteurs à bilame offrent une protection temporisée, tandis que ceux à électroaimants offrent une protection instantanée. Parce qu'un disjoncteur magnéto-thermique combine ces deux technologies, il est capable de fournir une protection instantanée et temporisée en fonction de l'application particulière. Par exemple, la protection instantanée convient pour interrompre des courants extrêmement élevés qui pourraient devenir mortels, alors que la protection temporisée est nécessaire dans les équipements électriques qui consomment temporairement des courants supérieurs à leurs valeurs nominales.

Conditions ambiantes et d'installation

● Altitude jusqu'à 2000m ;
● La température moyenne ambiante doit être comprise entre -5℃ et +40℃ (+45℃ pour les produits marins) ;
● Il peut résister à l'effet de l'air humide ;
● Il peut résister à l'effet des moisissures ;
● Il peut résister à l'effet du rayonnement nucléaire ;
● L'inclinaison maximale est de 22,5℃.
● Il peut toujours fonctionner de manière fiable lorsque le navire est soumis à des vibrations normales ;
● Il peut toujours fonctionner de manière fiable si le produit est soumis au tremblement de terre (4g).
● Endroits où le milieu environnant est exempt de danger d'explosion et loin de gaz ou de poussières conductrices qui éroderaient le métal ou détruiraient l'isolation ;
● Tenir à l'écart de la pluie ou de la neige.

Composants du disjoncteur

Components of Circuit Breaker



données techniques

Dimensions

Formulaire de sélection de produits

Panier de demande()

Entrer en contact

Captcha Code
×
